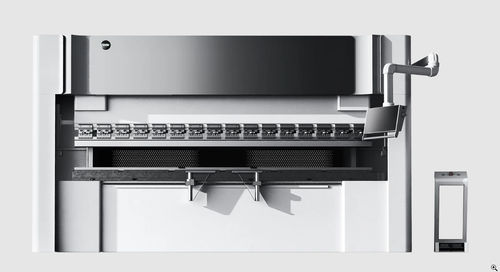

Electro-hydraulic press brake Bodor iBend

CNCautomaticprecision

Overview
The Bodor iBend Series is a classic electro-hydraulic servo press brake engineered for high-precision sheet metal bending. Designed to international-class standards for hardware, control, stability, safety and service, it provides consistent bending accuracy and lifecycle support.

Highlights

• Hardware: Ultra-thick carbon steel frame with mortise-and-tenon structure for high rigidity, load capacity and impact resistance.
• Software: Compatible with multiple industry-leading control systems.
• Safety: Multiple protection measures including safety light curtains and phase sequence protection; optional anti-crush safety curtain available.
• After-sales service: Global professional support with 24h online after-sales service and 1 year full machine warranty.

Key Features

• Reinforced carbon steel frame with mortise-and-tenon structure to ensure stability and repeatable bending accuracy.
• Forged high-strength steel tooling manufactured with mainstream heat-treatment processes; tooling hardness up to HRC53±2 and cutting edge depth 2–4 mm.
• Backgauge with dual linear guide rails for balanced force distribution and long-term accuracy compared with single-rail designs.
• Automatic deflection compensation: software calculates compensation based on workpiece length, thickness and angle to maintain consistent bending across parts.
• Reference bending cycles indicator shown on page: 500w (actual configuration depends on specific model).

Optional Functions & Equipment

• Laser angle detection for precise angle measurement and secondary correction in batch or precision bending.
• Following support carriage to support large or heavy sheets during bending and prevent deformation.
• Anti-crush safety curtain to stop the machine when the protected area is entered.

Service & Warranty

• 24h online professional after-sales service.
• Full machine warranty: 1 year (terms as per contract).

Applicable Industries
Suitable for shipbuilding, new energy, automotive, construction machinery, steel processing subcontracting, building decoration, furniture and white goods manufacturing, and other industries requiring precision sheet metal bending.

Specifications

• Product series: Bodor iBend Series
• Machine type: Electro-hydraulic servo press brake
• Frame: Ultra-thick carbon steel with mortise-and-tenon structure
• Tooling: Forged high-strength steel tooling; max hardness HRC53±2; cutting edge depth 2–4 mm
• Bending cycles (page reference): 500w
• Backgauge: Dual linear guide rails
• Deflection control: Automatic deflection compensation based on length, thickness and angle
• Optional equipment: Laser angle detection; following support carriage; anti-crush safety curtain
• Software compatibility: Compatible with multiple industry-leading control systems
• After-sales: 24h online service; 1 year full machine warranty
