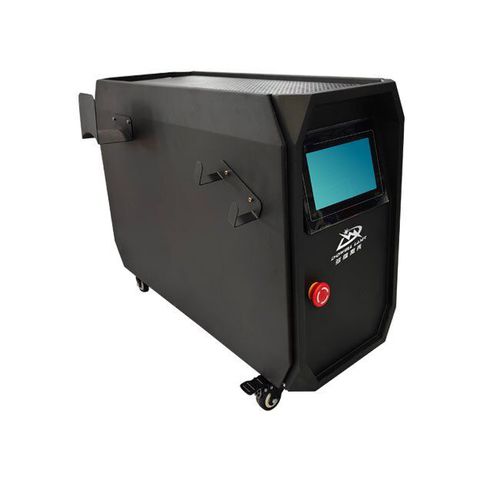

Laser welding machine

automaticstandalonefor aluminum

DOWELL 1500W portable handheld air-cooled laser welder adopts air-cooled cooling equipment, which has the characteristics of small size, convenient movement and low price. Traditional argon arc welding can easily meet the heat dissipation requirements. But it is noisy, and the temperature cannot be adjusted and controlled. Features of air cooled laser welder • The output power is 1KW, and the welding penetration reaches 3mm • Based on 976nm pump technology, high electro-optical conversion efficiency ≥42% • Single welding head, welding wide pendulum • The weight of the whole machine is less than 60kg, miniature design, small size • Unique air-cooled design, low power consumption, energy saving and environmental protection, power supply 220VAC-16A • Triple protection design, including air pressure detection device Specification of Handheld Air-cooled Laser Welder: • Output Power：1500W • Output Light Wavelength：1070±10nm • Output Spot Quality：M2＜1.3, Fiber Core 20um • Power Stability：＜2% • Indicating Light Wavelength：650nm • Output Fiber Interface Type：QBH/QD • Supply Voltage：220VAC/50Hz/60Hz • Digital Signal Voltage：24VDC • Control Port：TTL/RS232/Ethernet/Databus • Power Consumption：≤2.5KW • Working Environment Temperature Range：5-45℃ • Working Environment Humidity Range：≤95%
