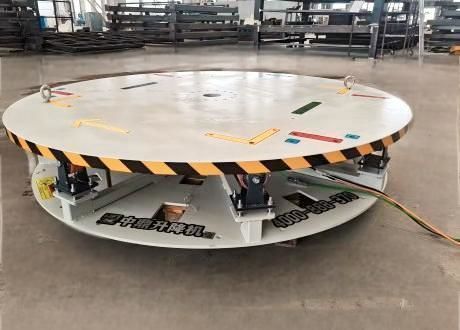

Motor-driven rotary table

laboratoryhigh-precisionhigh-capacity

This high-precision servo rotary platform is specifically engineered for laboratory and industrial applications requiring reliable, heavy-duty, and low-runout rotary motion. Featuring a robust 2000 mm diameter working surface, the platform is capable of supporting loads up to 5 tons while maintaining exceptional flatness and rotational accuracy. - Constructed from HT250 cast iron and stress-relieved steel structures, the platform ensures long-term mechanical stability and vibration resistance. It is pneumatically clamped from four directions to prevent micro-movements during operation, making it ideal for precision positioning and testing applications. Features: - High Precision and Stability: Engineered for demanding laboratory and industrial applications requiring consistent and accurate rotary motion with minimal runout. - Robust Construction: Built with high-grade cast iron and stress-relieved steel, ensuring structural stability, vibration resistance, and long-term durability. - Reliable Pneumatic Braking System: Pneumatic clamping from four directions ensures zero micro-movement during operation, enhancing safety and precision. - Customizable Surface Finishing: Treated with a durable epoxy zinc-rich primer and polyurethane topcoat, with color customizable to client requirements for corrosion resistance and aesthetic integration. - Flexible System Integration: Designed without a built-in electrical control system, allowing seamless integration into existing automation or control setups as needed. Specification: - Model: High-precision Servo Rotary Platform - Loading Capacity: 5000kg - Platform Diameter: 2000mm - Max. Rotation Speed: 2.7 r/min - Rotational Accuracy: Axial runout ≤ 0.05 mm, Radial runout ≤ 0.1 mm - Power: 2.5kW - Self Height: 550mm - Power Supply: 3-phase/380V - Motor Type: Servo Motor - Braking System: Pneumatic clamping mechanism Note: The above parameters are for reference only, all products can be customized
