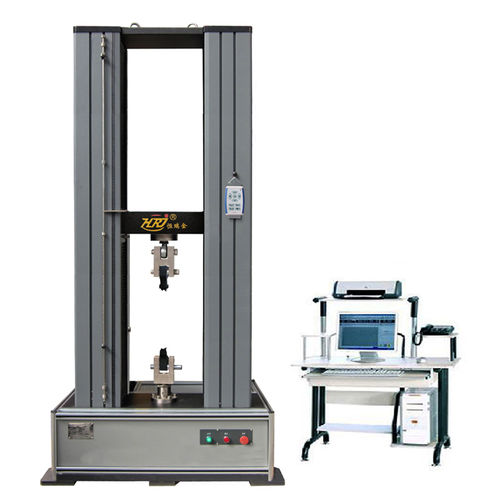

Tensile testing machine HST10-D50

electromechanicaldouble-columnhigh-speed

HST10-D50 50kN High Speed Tensile-Impact Testing Machine (CE CUL/CSA) →10m/min＆166mm/s＆400in/min High-speed Tensile-Impact Test →50kN＆10m/min High-speed Tensile-Impact Testing System(CE CUL/CSA) →50kN High-speed Tensile-Impact Test 1. Introduction →HDPE butt-fusion pipes high speed tensile impact test at room temperature →ASTM F2634-2010 Standard Test Method for Laboratory Testing of Polyethylene (PE) Butt Fusion Joints using Tensile-Impact Method →ASTM D883，D3035，D2513，E177，E691，ISO 13953 →Used in tensile,impact,compression tests at high speed for metals, nonmetals, alloys, composites at room temperature 2. Technical Specification →tensile impact load≥50kN →tensile impact test speed ≥10m/min＆400in/min＆166mm/s →0.1mm/min～10m/min high speed tensile impact starting time≤2.0s →10mm/min～0.1m/min high speed tensile impact stop time≤2.0s →high speed tensile impact speed accuracy: ≤±0.5% →tensile impact position resolustion at high speed: 0.033μm →accuracy of high speed tensile and impact load: ≤±0.5% (range:0.2%-100%F.S) →sampling frequencyof high speed tensile and impact: ≥1000Hz(10Hz-1000Hz points can be set freely) →HRJ-Test test software →optional cabinet(combine computer, measurement and control system) →optional HRJ rotatory computer control system →optionalHRJ Touch Screen System(TSS)
