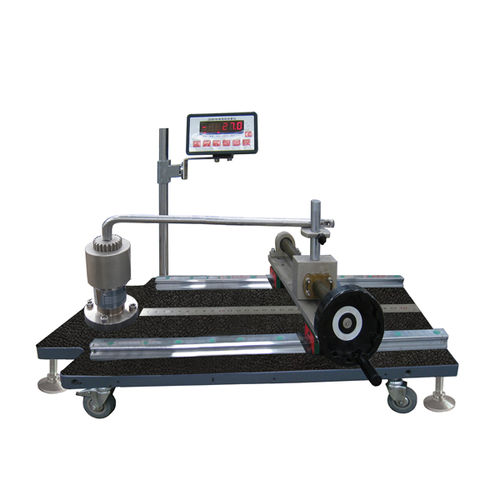

Torque calibrator NBJS series

standard

NBJS-100/200/300/500/1000N.m Torque Wrenches Standard Machine/Calibrator DETAIL 1. Introduction →Used in measurement, calibration and verification for torque wrenches, torque screwdrivers or other appliance (torque wrenches) with torque measurement or control mechanism. →Used for fastening bolts, nuts, screws or other similar components and to measure, control, calibrate the torque, torsion angle, torsion angle stiffness, etc. Standard →ISO1173 Assembly tools for screws and nuts;Drive ends for hand- and machine-operated screwdriver bits and connecting parts-dimensions; torque testing →ISO6789 Assembly tools for screws and nuts; hand torque tools; requirements and test methods for design conformance testing; quality conformance testing and recalibration procedure; Assembly tools for screws and nuts- Adjustable wrenches, MOD →DIN ISO 1711-1 Assembly tools for screws and nuts-Technical specifications →ISO 2936;2014 Assembly tools for screws and nuts-Hexagon socket screw keys →ISO 3317-2015 Assembly tools for screws and nuts-Square drive adaptor with hexagon or cylindrical flat drive, for power socket wrenches 2. Specifications →Max. Torque: ±100N.m; ±200N.m; ±300N.m; ±500N.m →Measuring range: 0.2%-100% F.S →Torque resolution:±1/200000 →Relative error of indicating value of torque: ≤±0.3% →Control mode:Manual loading, forward and reverse, clockwise and counterclockwise →Working voltage: 220VAC, 50Hz →Dimension of loading frame (L*W*H): 1700x600x700mm
