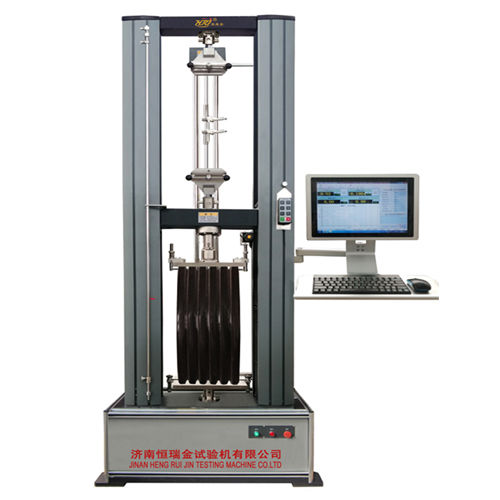

1. Introduction
→Applicable to pipes diameter less than 1500mm, for determination of ring stiffness, ring flexibility, flattening, creep ratio continuous test(1000h/42d), deflection properties, etc.
→ For original ring tensile test for fiber glass reinforced plastic mortar pipes.
→ Application for pipes: PE pipes, UPVC pipes, CPVC pipes, PE-X pipes, PP-R pipes, PB pipes, PS pipes, PAP pipes, SP pipes, PP pipes, PPR pipes, ABS pipes, PVC-U double-wall corrugated pipes, RPM pipes, FRPM pipes, polyethylene silicon core pipes, PVC-U double wall corrugated pipes, etc.
Comply with standards: EN 13476-1, ISO9969
2. Technical Specification
Max. Test force: 30kN/50kN/100kN
Load class: Class 0.5/Class 1
Measuring range of load: 1%-100%FS
Relative error of indicating value: Within ±0.5%
Load resolution: 1/±300000F.S
Measuring range of deformation: 0.2%-100%
Control precision of deformation rate: Within ±1%
Adjusting range of displacement rate: 0.001-600mm/min
Control precision of displacement rate: Within ±0.2% of the set value
Test span: 510mm
Measuring range of pipes: 0-1500mm
Compression platen: 310mm*260mm
Power supply: 220VAC, 50Hz
Power: 2.0kW
Dimension (L*W*H): 1050*640*2600mm
