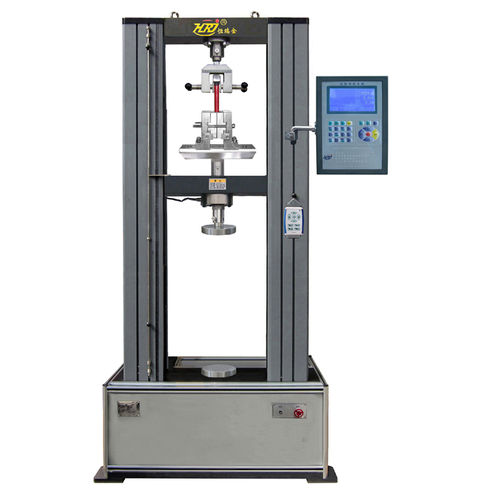

Tensile testing machine LDS series

tensionmaterialsdigital

1. Introduction → Used in drawing force, pulling off test for the hammer separated from the hammer handle. → Applicable in various types of hammers: hexagonal hammer, octagonal hammer, nipple hammer, fitter`s hammer, claw hammer, drum type hammer, testing hammer, circular hammer, ball-point hammer, ball-peen hammer, pap hammer, wooden handle hammer with round head, steel shank claw hammer, lug hammer, stone hammer, etc. 2. Specifications →Max. load: 20kN/50kN/100kN →Accuracy class: class 1 →Measuring range of load: 1%-100% →Load resolution: 0.01N →Deformatino resolution: 0.01mm →Displacement speed: 0.2-500mm/min →Test span: 400mm →Crosshead stroke: 1000mm →Power: 1 phase, 220V, 50Hz
