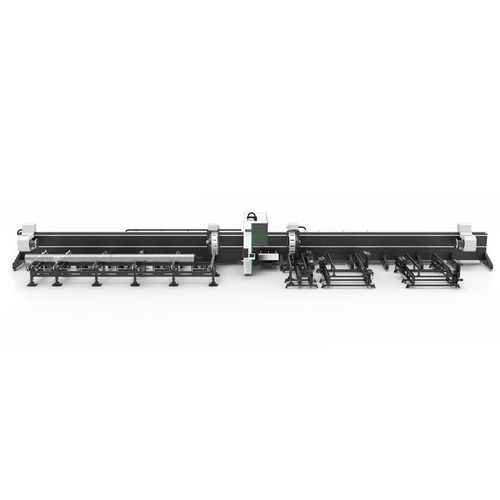

Laser cutting machine 12063TSF

for metaltubeCNC

The Ultra Heavy Four-chuck Tube Laser Cutting Machine handles ultra heavy tubes and profiles, with 6kw to 30kw laser power. Its side-attached machine bed ensures stability, large loading capacity, and higher cutting accuracy. Processing capacity includes 12m tube length, 630mm diameter, and various profiles. Three-chuck design ensures “0” tailing with better accuracy. Advanced CNC system and cutting software enable high-speed cutting. Four-chuck allows reversed cutting for whole pipe processing, maximizing material utilization and cost-saving. • Side-mounted Heavy-duty • Four-chuck to Achieve 0 Tailing • 2 Year Limited Warranty • Passed CE/FDA/ETL,Meeting European and American Standards Powerful Four-Chuck Tube Cutter for Industrial Use 30kW laser cuts round, square, and rectangular pipes with precision. Max 12m pipe, 3000KG capacity, four-chuck design for zero-tail cutting. Ultra heavy tube machine ensures stability, larger loading, higher accuracy. Four-chuck for whole pipe processing, zero tailings, cost-saving. Side-mounted Four Chucks Structure Stable, precise cutting with Four-Chuck design. Achieve zero tailings, optimize material use. Side-attached bed for stability, larger capacity, improved accuracy. Premium ±45° Bevel Cuts（Optional） Effortlessly achieve ±45° bevel cuts, eliminating the need for additional beveling steps. Automatic Loading and Unloading System Automatic loading and unloading with 6m tube bundle, intelligently sorted. High degree of automation saves labor and improves efficiency. Users can load standard tubes for batch production with little manual intervention.
