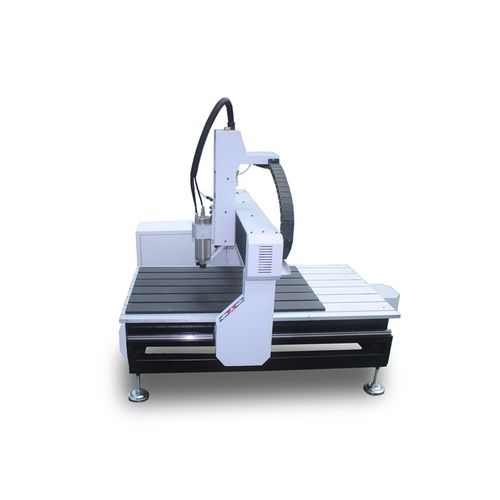

CNC router HT-6090A

desk

Desktop CNC Rotuer HT-6090A Characteristic 1.high accuracy ball bearing guide screw of taiwan,minimize the slit. 2.imported linear rail,self lubricating glide. 3.our routers have the features of recarving after stop and the power failure may be restored. 4.unique preservation way of the zero point. 5.use for long time and no distortion. 6.this type is suitable for advertisement,wood engraving. number : Description : parameter 1 : XYZ working area : 600*900*100mm 2 : Table size : 740*1120mm 3 : XYZ travel positioning accuracy : ±0.01mm 4 : XYZ repositioning positioning accury : ±0.01mm 5 : Gantry : cast-aluminium 6 : lathe structure : casting iron 7 : drive system X-Y axis : Ball screw 8 : drive system Z axis : Ball screw 9 : Spindle power : 1.5KW 10 : Max velocity : 8m/min 11 : Max working speed : 6m/min 12 : Spindle speed : 0-24000rmp 13 : work mode : Stepper 14 : Working voltage : AC220V 15 : Command language : G code 16 : Interface : USB 17 : Operating system : Ncstudio/Mach3/DSP 18 : Flash memory : 128 19 : X-Y resolution : 0.025mm 20 : Software environment : Wentai type3 artcam 21 : Running environment : Temperature:0-45°C 22 : Packing size : 1550*1140*900mm 23 : Net weight : 165kg 24 : Gross weight : 200kg
