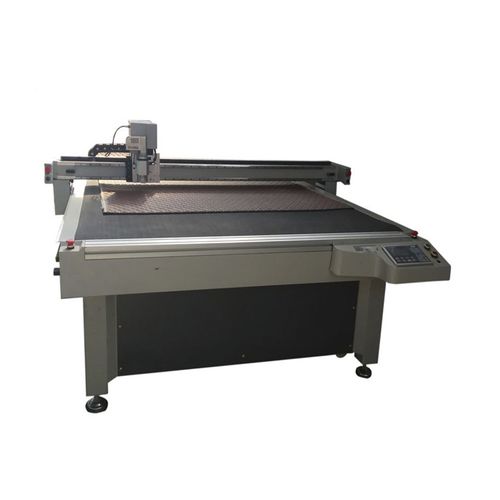

Knife cutting machine DCF70 series

for rubberfor carpetsfor gaskets

Oscillationg Cutting Machine DCF70 Detail DCF70 series low-layer cutting system is developed mainly for production. This machine has many merits such as high speed, high accurate, good mechanical stability, by adopting the new control system and liner guides driving system. it not only has a big improvement on the efficiency, but also very good at expanding the other tools in the future. The materials it can cut are cloth, carpet, mats, rubber and so on, which can be used in the industry as garment, sofa, automotive interior, gasket etc. The main features: ·Optimized for small production, steady performance ·Easy to expand to other tools ·lower energy consumption Model : DCF702516 : DCF701713 : DCF701310 Effective cutting area : 2500*1600mm : 1700*1300mm : 1300*1000mm Configuration : Oscillating knife、pen Max speed : 1400mm/s Smallest cutting diameter : 6mm Maximum cutting thickness : 60mm Control line and driver : Servo Precision : ≤0.1mm Vacuum : 5.5kw Data form : HPGL, DXF, PDF Voltage : 220v±10% 50Hz Data port : parallel port，serial port，USB port Data Transmission speed : 10MB/s
