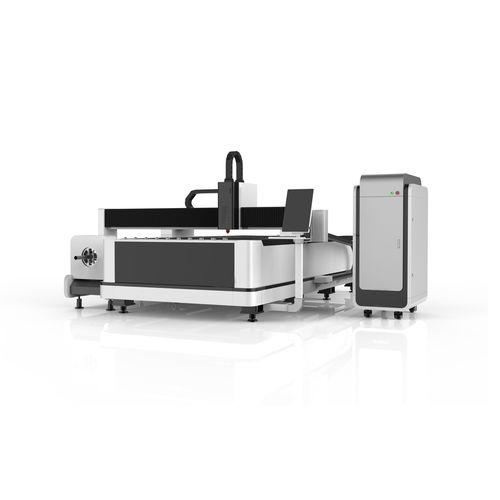

Fiber laser cutting machine for metalsheet metaltube
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal
- Product handled
- sheet metal, tube
- Control type
- CNC
- Applications
- for industrial applications, for the automotive industry, for metal fabrication, for aeronautical applications, for the electronics industry, for medical applications, metallographic, for processing industry, for shipbuilding
- Workpiece loading
- manual loading
- Phase
- three-phase
- Configuration
- large-format, gantry type, single-head, 3-axis
- Other characteristics
- high-precision, automatic, high-speed, precision, CE, high-performance, high-power, high-efficiency, with servo-motor, for mass production, mild steel, for steel construction, heavy-duty
- X travel
1,500 mm
(59 in)- Y travel
3,000 mm
(118 in)- Maximum cutting height
250 mm
(9.8 in)Max.: 300 mm
(11.8 in)Min.: 100 mm
(3.9 in)- Tube diameter
200 mm
(8 in)Max.: 220 mm
(9 in)Min.: 20 mm
(1 in)- Cutting speed
17 m/s
(55.774 ft/s)Max.: 20 m/s
(65.617 ft/s)Min.: 4 m/s
(13.123 ft/s)- Laser power
Max.: 8,000 W
Min.: 1,000 W
- Repeatability
0.02 mm
(0.0008 in)
Description
Feature:
1. Both plate and tube can be processed by the machine.
2. Fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.
3. Both sides of rotary device adopts electric clamps and it can modulate the center automatically. The adjustable pipe diameter or width range from 20 to 220mm. It can focus automatically
4. Computer design suit for repeat cutting
5. Laser is contained inside a fiber optic cable.(no mirrors to adjust)
Laser Power - 1000/2000/3000/4000/6000/7000/8000W
Laser Source - IPG/Raycus
Reposition Accuracy - ±0.02mm
Max.acceleration - 1.5G
Voltage and frequency - 380V 50Hz/60Hz
Max.Working Size - 1500*3000mm
Pipe Size range - Dia. /width20-220mm
Widely Applicable Fields:
kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.
Widely Applicable Material
stainless steel - aluminum alloy - galvainzed sheet steel
carbon steel - titanium alloy - pickle plate
silicon steel - aluminum-plating Zinc plate - metallic copper and other metals with pallet
