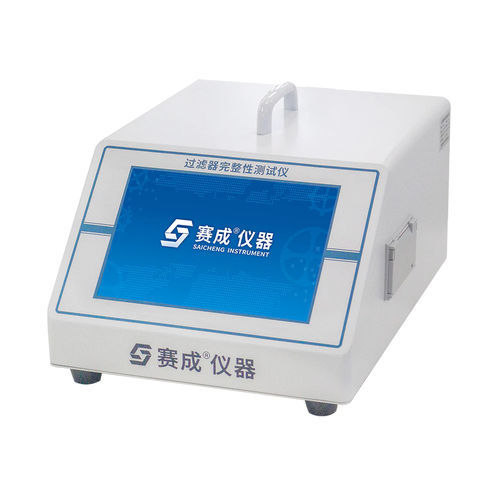

Bubble point tester M6.5

for filtersfor the electronics industryfor filters

The M6.5 Automated Filter Integrity Tester is suitable for integrity testing of various filter membranes, disc filters, capsules, cartridges, etc. This tester is a compact, easy-to-use, and fully automated integrity test instrument, which performs the bubble point, enhanced bubble point, forward flow, water intrusion, and pressure decay tests for hydrophobic filters. Product Features: - Multiple testing methods: bubble point, enhanced bubble point, forward flow, water intrusion, and pressure decay. - 10-inch color touchscreen with graphical user interface (GUI). - High precision sensors ensure high accuracy and repeatability of the measurement system. - Users can select manual or automatic test modes. - Detailed test data and real-time test curves, with automatic statistical analysis of test results on completion. - The instrument is embedded with SAICHENG's latest operating software, featuring a user-friendly interface, intelligent data processing, strict user management, and secure data storage. - Equipped with micro-printer and standard USB interface. Applications: This instrument is applicable to determine the integrity test of filters in industries such as pharmaceutical, biotechnology, food and beverage, electronics, membrane manufacturing, air filtration, etc. Technical Specifications: - Test Range: Bubble point: 50 ~ 8000 mbar, Forward flow: 1 ~ 1000 mL/min, Pressure decay: 50 ~ 8000 mbar, Water intrusion: 0.01 ~ 100 mL/min - Test Accuracy: Net volume: ±4%, Bubble point: ±50 mbar, Forward flow: ±4%, Pressure decay: ±1.0 mbar, Water intrusion: ±0.01 mL/min - Unit: Mbar, kPa, MPa, Psi, kgf/cm - Test Pressure: 50 ~ 10000 mbar (150 Psi) - Instrument Dimension: 330mm(W) x 550mm(D) x 270mm(H) - Net Weight: 14 kg - Power Supply: AC 100-240V 50/60Hz (can be changed to local requirement) Configurations: Instrument, Micro-Printer, Professional Software, 485 Communication Cable, Filter Housing Frequently Asked Questions about the Filter Integrity Tester: Filter integrity tests are conducted to verify and ensure that a filter membrane meets quality and regulatory requirements. If a filter fails the integrity test, it indicates that the filter is no longer reusable and that previously filtered batches may need inspection. Filter integrity testing can be categorized into two types: Destructive and Non-Destructive testing. Non-Destructive tests include the Bubble Point, Diffusion, and Pressure Decay tests, which are chosen based on specific testing requirements. The bubble point test operates on the principles of capillary action and surface tension. When liquid passes through the filter, it fills the pores due to these forces. Pressure is then applied to displace the liquid from the pores, allowing for pore size measurement. The minimum pressure required to push the liquid out from the smallest pore determines the bubble point, which indicates the pore size. This test is commonly used to detect defects in hydrophobic filters, typically used as air vent filters. In this test, water is pressurized into the upstream side of the filter to assess filter quality, comparing results to the manufacturer's specifications. The bubble point is the minimum pressure at which the first bubble of liquid emerges from a pore in the membrane. This pressure value helps characterize the pore size and quality of the filter.
