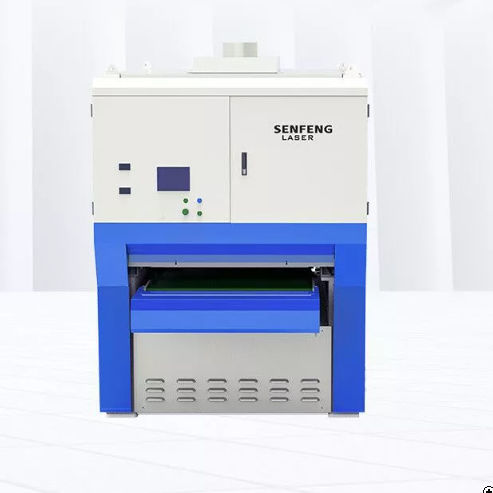

Wide-belt sanding machine SFD series

beltstationaryelectric

Product Overview
Automatic sheet metal deburring and sanding system composed of control, power, conveying, lifting and grinding subsystems. The control system programs workpiece length and thickness, the lifting system sets platform height, and the conveying system feeds parts to the grinding section to perform burr removal and surface finishing on sheet components.

Features

• Removes burrs and provides edge rounding while preserving the oxide layer and maintaining part thickness.
• PLC full-computer touch-screen control for straightforward operation, integrated fault alarm and low failure rate.
• Low wearing-parts cost, reducing operating expense.
• Two 18.5 kW main motors for reliable power; robust construction and heavy-duty components (approx. 3.9 t dead weight) for continuous industrial use.

Application Industry
Suitable for sheet metal processing across industries such as industrial fabrication, aviation & aerospace, electronics, rail/subway components, automotive, food machinery, textile machinery, construction equipment, precision parts, shipbuilding, metallurgy, elevators, household appliances, metal decoration and signage.

Technical Parameter of Sheet Metal Sander
Model | SFD630 | SFD1000 | SFD1300 | SFD1600
Working Width | ≤630 mm | ≤1000 mm | ≤1300 mm | ≤1600 mm
Processing Thickness | ≤50 mm (all models)
Processing Length | unrestricted (all models)
Abrasive Belt Speed | ≈1100 m/min (all models)
Feeding speed | Vacuum adsorption: 0.5–5 m/min; Magnetic suction: 0.5–7 m/min (all models)
Thickness adjustment method | Automatic (all models)
Thickness adjustment accuracy | < 0.02 mm (all models)
Total power | 20.37 kW (SFD630) | 68.5 kW (SFD1000) | 80 kW (SFD1300) | 94.5 kW (SFD1600)
Working pressure | 0.4–0.6 MPa (all models)
Machine Size | 1910 × 1100 × 2100 mm (SFD630) | 3700 × 1700 × 2300 mm (SFD1000) | 4100 × 2200 × 2200 mm (SFD1300) | 4400 × 2700 × 2300 mm (SFD1600)

Specifications

• Models: SFD630, SFD1000, SFD1300, SFD1600
• Working width: ≤630 / ≤1000 / ≤1300 / ≤1600 mm (model-dependent)
• Processing thickness: ≤50 mm
• Processing length: unrestricted
• Abrasive belt speed: ≈1100 m/min
• Feeding speed: Vacuum adsorption 0.5–5 m/min; Magnetic suction 0.5–7 m/min
• Thickness adjustment: Automatic, accuracy <0.02 mm
• Total power (by model): 20.37 kW / 68.5 kW / 80 kW / 94.5 kW
• Working pressure: 0.4–0.6 MPa
• Machine dimensions: see model-specific sizes above
