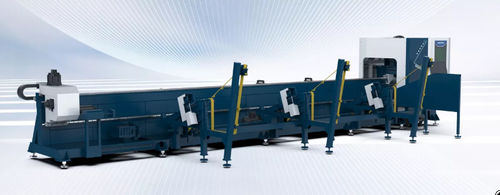

Laser cutting machine SFPLUS series

for aluminumfor stainless steelfor metal

Overview
This PLUS Series tube laser cutting system is designed for industrial production of round, square and rectangular tubes with high throughput and tight repeatability. The machine integrates dual pneumatic chucks for simultaneous cutting and loading, servo-driven axes and precision guideways to ensure stable motion and accurate positioning across a wide range of tube materials and diameters.

Highlights

• Dual pneumatic chucks enable concurrent cutting and loading to minimize idle time and support continuous operation.
• Servo motors and precision linear guides provide stable motion with repeatability accuracy of ±0.03 mm and positioning accuracy of ±0.05 mm (model-dependent).
• High dynamic performance delivers significantly increased cutting speed (design target approximately 50% faster vs. comparable models).
• Rear chuck with blow-off function removes cutting residues to reduce jamming and downstream failures.
• Compatible with stainless steel, aluminum alloys and high-reflectivity tubes; supports round, square and rectangular profiles.

Special for Small Tube
Advanced laser energy-control and beam management minimize burning, burrs and thermal deformation on small-diameter tubes. Minimum supported tube diameter: 15 mm (model-dependent).

Bevel Cutting (±45°)
Autofocus cutting head combined with specialized pneumatic chucks allows ±45° bevel cuts on round, square and rectangular tubes as well as on angle and channel sections. ±45° beveling is standard on some variants and optional on others.

Loading & Unloading
Supports semi-automatic and fully automatic intelligent loading/unloading systems that handle multiple tubes at once. Cut parts are automatically discharged to reduce cycle time. Servo-controlled handling ensures steady material flow and repeatable positioning.

Optional / Advanced Functions

• Zero-tail cutting: over-the-chuck cutting for ultra-short or zero tail lengths.
• BCW profile scanner: real-time measurement and compensation for deviations between actual tube profile and drawing.
• Automatic slag cleaner: cleans inner tube walls during cutting to maintain interior quality.

Technical Parameter
Model | Laser Power (kW) | Max Length of Tube (mm) | Scope of Tube Size (mm) | Max Weight of Tube (kg) | X/Y-axis Positioning Accuracy (mm) | X/Y-axis Repositioning Accuracy (mm) | ±45° Bevel Cutting | Max No-load Speed (m/min) | Max Rotating Speed of Chucks (r/min) | Max Acceleration (G) | Overall Dimensions (L*W*H, mm) | Power Supply
SF3008PLUS | 1.5-3 | 3000 | Φ16-80 ; □16*16-80*80 | 60 | ±0.05 | ±0.03 | No | 100 | 240 | 1.5 | 3700*1780*2410 | Three-phase 380V, 50Hz/60Hz (custom-made)
SF6012PLUS | 1.5-3 | 6500 | Φ15-120 ; □15*15-120*120 | 120 | ±0.05 | ±0.02 | No | 150 | 240 | 1.5 | 9100*2230*2300 | Three-phase 380V, 50Hz/60Hz (custom-made)
SF6012PLUS (variant) | 1.5-3 | 6500 | Φ15-120 ; □15*15-120*120 | 120 | ±0.05 | ±0.02 | Yes | 150 | 240 | 1.5 | 9100*2230*2300 | Three-phase 380V, 50Hz/60Hz (custom-made)
SF6016PLUS | 1.5-3 | 6500 | Φ15-170 ; □15*15-170*170 | 160 | ±0.05 | ±0.02 | No | 150 | 200 | 1.5 | 9100*2230*2300 | Three-phase 380V, 50Hz/60Hz (custom-made)
SF6024PLUS | 3-6 | 6500 | Φ20-230 ; □20*20-230*230 | 260 | ±0.05 | ±0.02 | No | 100 | 100 | 1.0 | 9320*3100*2500 | Three-phase 380V, 50Hz/60Hz (custom-made)

Technical Specifications

• Series name: PLUS Series
• Repeatability accuracy: ±0.03 mm
• Positioning accuracy (X/Y): ±0.05 mm
• Max no-load speed: up to 150 m/min (model-dependent)
• Max rotating speed of chucks: up to 240 r/min (model-dependent)
• Max acceleration: up to 1.5 G (model-dependent)
• Supported tube materials: stainless steel, aluminum alloy, high-reflectivity tubes and others
• Minimum tube size supported: 15 mm (small-tube variants)
• Bevel cutting: ±45° available (model-dependent / optional)
• Automatic/semi-automatic loading & unloading: servo control and precision motor driven
