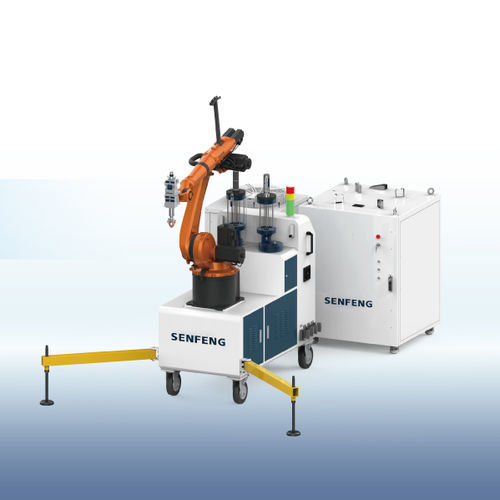

Robotic deposition machine SFMR02

for the aerospace industryfor molds

Overview
The mobile robot laser cladding system SFMR02 is engineered as a highly integrated, compact solution for on-site machining and surface restoration. It is designed for easy mobility and rapid deployment, enabling versatile in-place cladding operations on shafts, curved surfaces and complex-shaped components.

Applications
Laser cladding with the SFMR02 is suited to coating and repair tasks across industries such as aerospace, power generation, oil & gas and mining, pulp & paper, and mold & die maintenance. Typical uses include restoration of worn parts, localized surface reinforcement and refurbishing high-value components to extend service life and reduce downtime.

Advantages

• On-site laser cladding reduces downtime by restoring components without removal from the installation.
• Multi-function capability for repair and enhancement: dimension restoration, improved wear and corrosion resistance.
• Comprehensive refurbishment services including powder selection and turnkey training on technology, equipment operation, maintenance and software.

Documentation
Product catalogue and detailed technical documentation are available for the SFMR02 mobile robot laser cladding system.

caractéristiques / spécifications techniques

• Model: SFMR02
• Laser Power: 6kW
• Max robot payload: 20 kg
• Robot coverage / reach: 1813 mm (may vary by manufacturer)
• Laser spot size: φ2–φ5 mm
• Fiber core diameter: 600μm
• Number of powder feeder cylinders: 2
• Volume per cylinder: 2.5 L
• Powder particle size: 20–300μm
• Max powder feed rate: 150 g/min
• Powder feeding error: ≤1%
• Power supply: Three-phase 380V, 50Hz/60Hz (custom-made)
