3D laser cutting machine

fiber laserfor metalsheet metal

Overview

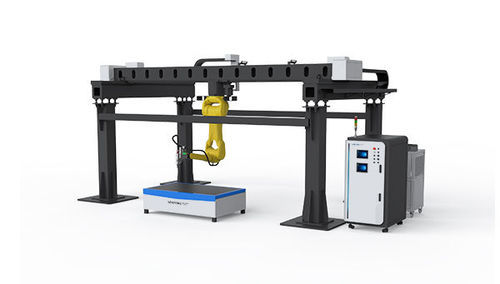

The 3D 8-axis intelligent fiber laser cutting system integrates a fiber laser cutting head, a high-precision capacitive height-tracking system, a fiber laser source and an industrial robot platform. It performs flexible multi-angle cutting of metal sheets and formed 3D parts and is suited for large-format 3D and flat-plate metal cutting.

Product advantages

• Stable operation: gantry dual-drive architecture with front and rear support brackets to reinforce structural rigidity; on-site foundation installation secures the chassis for sustained high-precision operation.
• Multi-process capability: supports both 3D contour cutting of formed components and flat-plate cutting, including large-format panels.
• Configurable layout: modular working tables — fixed, rotary positioner or translational rack-and-rail table — and customizable machine sizes; current maximum processing range up to 4.5 × 12 m.
• Improved throughput: coordinated axis control and robot integration reduce cycle time compared with conventional 3D cutting setups.

Applications
Applicable to sheet metal fabrication, kitchen appliances, chassis and cabinets, mechanical and electrical equipment, lighting hardware, signage, automotive parts, display equipment and other metal product cutting tasks.

Technical specifications

• X axis stroke (mm): 4000
• Y axis stroke (mm): 2000
• Number of axes: 8
• Max X/Y axis speed (m/min): 60
• Maximum acceleration (G): 0.6
• Maximum processing area (m): up to 4.5 × 12 (standard 4.5 × 4.5)
• Positioning accuracy (mm): ±0.03
• Working table: fixed / rotary / translational
• Laser power (kW): 1.5 / 2 / 3
