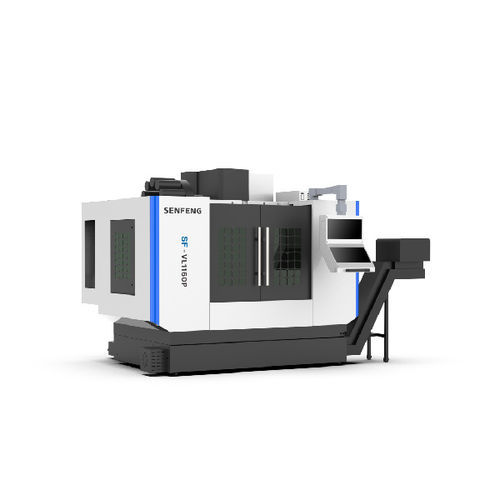

3-axis machining center SF-VL1160P

verticalcolumn typeBT 40

Product Brief
Model: SF-VL1160P
Working area: 1100×600×600 mm
Maximum load: 800 kg

Product Description
The SF-VL1160P vertical machining center is a medium-size CNC machine designed to perform milling, drilling, boring, reaming, countersinking and tapping in a single clamping. It is adapted for multi-variant, small-to-medium batch production of complex metal parts such as housings, plates, discs, valves and shells.

Advantages

• Full enclosure design for safe operation and simplified maintenance.
• Efficient automatic chip removal system to reduce downtime.
• High positioning accuracy and excellent repeatability.
• Stress-relieved, precision-machined bed for long-term stability.

Application industry
Typical applications: automotive, motorcycle, construction machinery, aerospace, defense, mould making and precision machining.

Technical specifications

• Model: SF-VL1160P
• Brand: SENFENG
• Travel (X/Y/Z): 1100/600/600 mm
• Worktable (W×L): 1200 × 600 mm
• Max table load: 800 kg
• T-slot size: 5-18-100 mm
• Table to spindle distance: 120–720 mm
• Column to spindle center: 650 mm
• Guideway: 3-axis linear guideways
• Spindle taper: BT40 (7:24) φ150
• Max spindle speed: 8000 rpm
• Spindle type: built-in spindle
• Rapid traverse rate (X/Y/Z): 36/36/24 m/min
• Max feed speed: 10000 mm/min
• ATC type: manipulator disc
• Tool holder: MAS403 BT40
• Tool magazine capacity: 24
• Tool change time (T-T): 2.5 s
• Power supply: 380V ±10% 50Hz
• Operating temperature: 0℃ to +40℃
• Machine dimensions (L×W×H): 3100 × 2500 × 2800 mm
• Machine weight: 6500 kg
• Machine shield: Full protect
• Position accuracy (X/Y/Z): 0.008 mm
• Re-position accuracy (X/Y/Z): 0.005 mm
