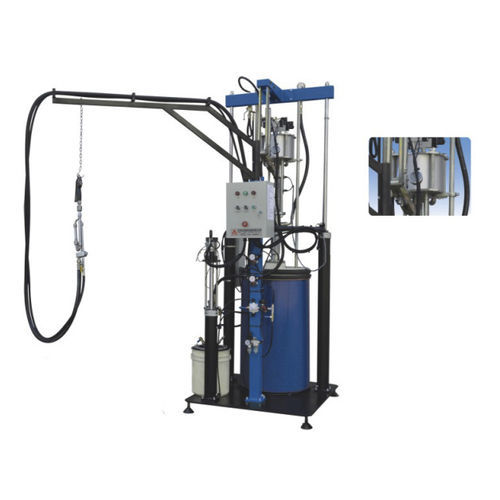

Extruder for the glass industry BST03

for two-component resins

- It is pneumatic control, large sealant output. - Integrated design of base material pump, curing agent pump and proportioning pump, to avoid leaking sealant and running idle. - Special one-way valve in proportioning pump, make the sealant output fluently. - Multi-channel filtering device, eliminate the impurities into the pump. - Equipped with safety valve device, guarantee the operating safety. - The rotating arm is equipped with a universal device, flexible and portable. Technical Parameter: Mix ratio 6:1~14:1 Charging basket 55 gallon (200L) Curing agent basket 5 gallon (20L) Max. air consumption 0.8m3/min Squeeze pressure 30Mpa Air pressure 0.6~1.0Mpa Output 4~10L/min Overall dimension 1100×950×1980mm
