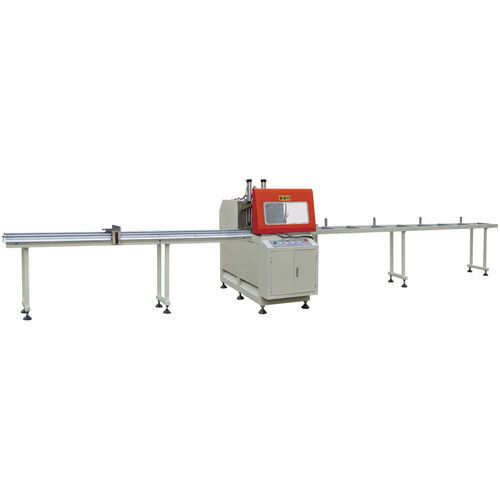

Circular saw LJZG-550for aluminumfor PVCfor profiles
Add to favorites
Compare this product
Characteristics
- Technology
- circular
- Treated material
- for aluminum, for PVC
- Applications
- for profiles
- Operational mode
- automatic
- Other characteristics
- precision
- Circular saw blade diameter
550 mm
(22 in)
Description
- Applies to cutting aluminum and PVC at 90 degree.
- High precision scale device, stable operation.
- Imported linear guide rails result highly precise cutting.
- Automatic protection guard results safe operation.
Technical Parameter：
Input voltage
380V 50Hz
Input power
3.0Kw
Air pressure
0.5~0.8MPa
Air consumption
110L/min
Spindle speed
3200r/min
Cutting length
100~3500mm
Cutting width
≤400mm
Cutting height
≤170mm
Cutting angle
90°
Saw feeding speed
0~3m/min
Saw blade standard
φ550×4.4×φ30×Z120
Overall dimension
2000×1200×1600mm
