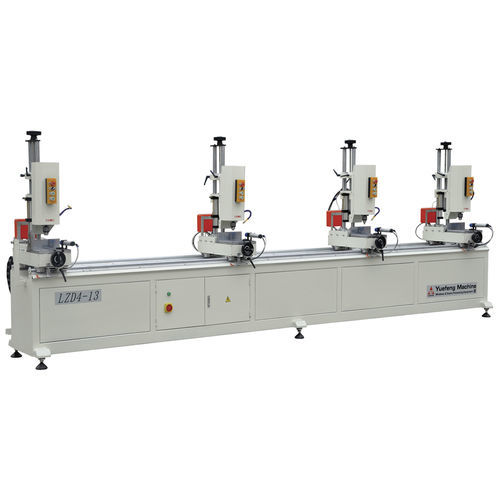

CNC drilling machine LZD4-13 for PVC profiles
Add to favorites
Compare this product
Characteristics
- Type
- CNC
- Applications
- for PVC profiles
Description
- Used for processing holes on aluminum, PVC and curtain wall, once can process several holes, fit for over-lengthy profiles.
- Four heads can work together as well.
- Boring anchor can be installed on each head results more holes.
Technical Parameter:
Input voltage
380V 50Hz
Input power
3.0 Kw
Air pressure
0.5~0.8MPa
Air consumption
100L/min
Motor rotation speed
1400r/min
Max. distance of holes
5000mm
Travel
125mm
Overall dimension
5500×1000×1900mm
