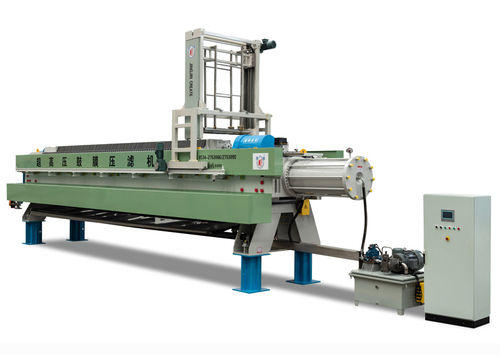

Frame filter press

automatichigh-pressurefor sludge treatment

About jingjin High Pressure Sludge Filter Press The research and development and test started in 2009, and put into market use in 2014. The oil cylinder adopts self-locking structure for more safety and energy saving. Lower water content of filter cake, 20%-30% lower water in the same working condition. Without adding any filler, the water content of sludge filter cake is ≤40%, and the amount of chemicals added is reduced by 30%. Pressing parameters of different industries Titanium white yellow mud pressed 80 kg, the water content of the filter cake can reach 17%-18%. The water content of filter cake can reach ≤46% with 80kg pressing in soy sauce industry. Municipal sludge industry press 85 kg, the water content of the filter cake can reach 38%-42%. Flotation tailing coal press 55 kg, the water content of the filter cake can reach 13%-16%. Pressing pressure can be freely adjusted in the range of 10-100kg (press pump is frequency converter controlled). Technical Advantage The material of Jingjin frame is Q345B, which tensile strength is 1.4 times of Q235, it makes Jingjin filter press can be operate more safe and stable The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide protection welding The main beam of Jingjin filter press is designed by adopting welded box construction, and manufactured by making use of submerged arc auto welding technology All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO epoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhesion.
