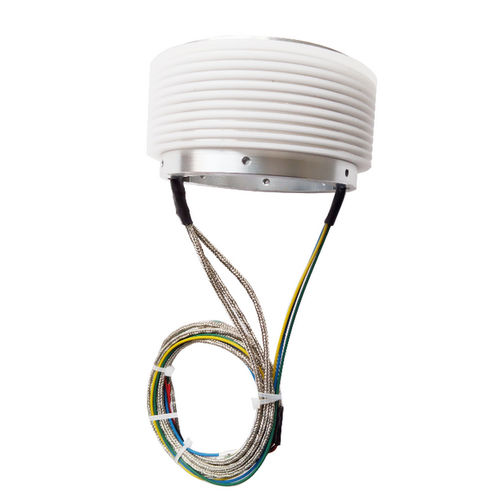

Electric slip ring DHK060-10-002sub-assembly2-parthollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- sub-assembly, 2-part, hollow-shaft, through-hole
- Applications
- for robots, for electric motors, for UAVs, for hydraulic applications
- Other characteristics
- multi-channel, anti-corrosion, compact
- Voltage
Max.: 440 V
Min.: 240 V
- Primary current
Max.: 10 A
Min.: 2 A
- Number of channels
Max.: 10 unit
Min.: 10 unit
- Internal diameter
Max.: 60 mm
(2.36 in)Min.: 60 mm
(2.36 in)
Description
Overview
Key features
Typical applications
Product naming / identification
Characteristics / technical specifications
- The DHK060-10-002 separate (2-part) slip ring is a compact through-hole slip ring system designed for flexible integration into customer assemblies where the rotor and brush holder are supplied separately for straightforward installation.
- It supports combinations of power and signal channels and is available as hollow-shaft variants with different inner diameters to meet specific integration requirements.
Key features
- Separate rotor and brush sets without housing to allow full integration into customer systems.
- Compact design and low weight for space-constrained installations.
- Adaptable to existing open systems for straightforward integration.
- Standardized mechanical interfaces for interchangeability and simple replacement.
- Repairable within defined limits; individual parts replaceable.
- Corrosion-resistant contact materials and low wear for extended service life.
Typical applications
- Actuator motors in hydraulic and pneumatic control systems.
- Three-phase motors with integrated speed or position monitoring.
- Rotary switches and slip-through connections in control cabinets.
- Space-saving drive and control combinations for drones, models and compact machines.
Product naming / identification
- Product type: DH — electrical slip ring family.
- Installation method: K — through-hole (bore installation).
- Through-hole product bore diameter: 60 mm.
- Total circuits: 10 circuits (10 channels).
- Identify number: -002 (specification variant identifier within the model series).
Characteristics / technical specifications
- Model: DHK060-10-002.
- Number of channels: 10.
- Rated current per channel: typically 2–10 A depending on circuit specification and configuration.
- Maximum working voltage: 240 V AC; 440 V DC.
- Rotor and brush holder: delivered separately to enable flexible mounting; rotor units available as hollow-shaft versions with selectable inner diameters.
- Customization: configurable combinations of power and signal channels available on request.
- Installation note: designed to fit standard through-hole dimensions for straightforward mechanical integration and replacement.
