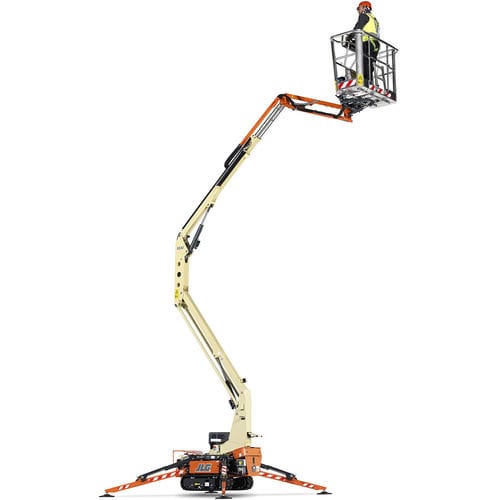

Crawler spider lift X14J
gasoline enginediesel-electric hybridcompact

crawler spider lift
crawler spider lift
crawler spider lift
Add to favorites
Compare this product


Characteristics

Portability
crawler
Motor type
gasoline engine, diesel-electric hybrid
Other characteristics
compact
Lift capacity

120 kg, 200 kg (265 lb)

Working height

13.8 m (45'03")

Description

Key Specs • - Working Height: 13.80 m / 45.3 ft • - Working Outreach: 6.76 m / 22.2 ft • - Platform Capacity: 120 kg / 264.6 lb • - Platform Capacity - Restricted: 200 kg / 440.9 lb • - Machine Width: 0.79 m / 2.6 ft Key Features • - Compact design increases ease of transport • - Enhanced maneuverability and accessibility • - Environmentally-friendly — electric and combustion combination power for efficient energy usage Power Source Engine Type - Diesel - 347cc HATZ 1B30 Engine Type – Petrol - Honda GX270, 6.3kw Petrol Fuel Tank Capacity - Diesel - 5 L / 1.3 gal. Fuel Tank Capacity – Petrol - 5.30 L / 1.4 gal. Performance Data Platform Capacity - Restricted - 200 kg / 440.9 lb Slope Tolerance - 10 ° Gradeability - 28.7 % Outriggers or Stabilizers - Yes Platform Capacity - 120 kg / 264.6 lb Swing - 361 Degrees Jib - Range of articulation - 83 Degrees Dimensional Data Machine Height - 2.07 m / 6.8 ft Machine Length - 4.02 m / 13.2 ft Machine Width - 0.79 m / 2.6 ft Outrigger Footprint Length - 2.87 m / 9.4 ft Outrigger Footprint Width - 2.91 m / 9.5 ft Platform Dimension A - 0.69 m / 2.3 ft Platform Dimension B - 1.34 m / 4.4 ft Track Length - 1.24 m / 4.1 ft Reach Specifications Working Height - 13.80 m / 45.3 ft Working Outreach - 6.76 m / 22.2 ft Working Outreach - 5.92 m / 19.4 ft Horizontal Outreach - 6.26 m / 20.5 ft General Specifications Capacity - Hydraulic Reservoir - 25 L / 6.6 gal. Maximum Ground Bearing Pressue - 0.41 Kg/cm2 Ground Bearing Pressure - Outriggers - 1.73 Kg/cm2 Machine Weight (CE & GOST) - 1398 kg / 3082.1 lb
