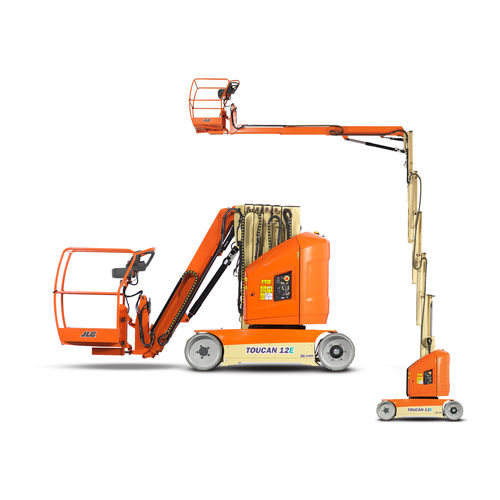

Mobile mast boom lift T12E Plus

battery-poweredindoor/outdoorcompact

Key Specs • - Working Height: 12.65 m / 41.5 ft • - Working Outreach: 6.70 m / 22 ft • - Platform Capacity: 200 kg / 440.9 lb • - Up and Over Height: 7.12 m / 23.4 ft Key Features • - Electric power for zero emissions and near-silent running indoors. • - No waiting with immediate-response AC drive motors for greater torque and efficiency. • - Get into more places with compact dimensions and precise control system. • - Extended reach and up-and-over height with heavy duty forklift-style mast and versatile articulating jib. Power Source Batteries - 48V - 260 A/h Electrical System - 48 Volts DC Performance Data Drive Speed - Platform Lowered - 6 km/h / 3.7 mph Gradeability - 2WD - 25 % Platform Capacity - 200 kg / 440.9 lb Swing - 345 Degrees Swing Type - Non-Continuous Turning Radius - Outside - 2.60 m / 8.5 ft Jib - Range of articulation - 120 Degrees Dimensional Data Ground Clearance - 0.13 m / 5 in. Machine Height - 1.99 m / 6.5 ft Machine Length - 3.65 m / 12 ft Platform Dimension A - 0.70 m / 2.3 ft Platform Dimension B - 1.05 m / 3.4 ft Tailswing - 0.13 m / 5 in. Tyre size - 457mm x 178mm non-marking solid Wheelbase - 1.60 m / 5.2 ft Reach Specifications Working Height - 12.65 m / 41.5 ft Working Outreach - 6.70 m / 22 ft Horizontal Jib Rotation - 0 Degrees Horizontal Outreach - 6.05 m / 19.8 ft Up and Over Height - 7.12 m / 23.4 ft General Specifications Capacity - Hydraulic Reservoir - 15 L / 4 gal. Machine Weight (CE & GOST) - 4900 kg / 10802.7 lb
