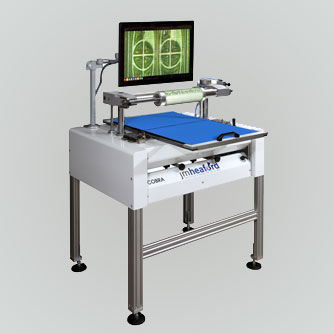

Flexo plate mounting machine Flat Table

Perfect register by fast and accurate plate mounting is essential to produce high quality print and maximise press productivity, particularly with short run work. Market leading innovative design Reduces mounting time Rapid return on investment Proven design working globally Two 50x magnification colour digital inspection cameras Vacuum table to hold the plates in place Hands free, bubble free plate application Cylinder and sleeve versions Two motorised camera option available Vision System with industrial grade fan-less computer Standard equipment supplied with each model Two 50x magnification colour digital inspection cameras for mounting one plate across. Each camera has a high intensity LED illuminator which generates a spot of light onto the plate to enable rapid positioning and illumination of the plate register marks. A 21.5" screen with mouse displaying both camera images on a single screen (27" touch screen supplied for the FTS 900). Industrial grade fan-less computer, 2GB RAM, 160GB HDD, 4 USB ports, operating temperature -20 Degrees Celcius to 70 Degrees Celcius at 100% CPU loading. Quick release adapters for different cylinder types, adapter exchange is tool free (cylinder version only). Tool free adjustment of left hand cylinder support for cylinders with different widths or cantilever mandrel system for sleeves. Support table integral to the design.
