Push camera system JPC 23 Series

for pipesinspectionCCD

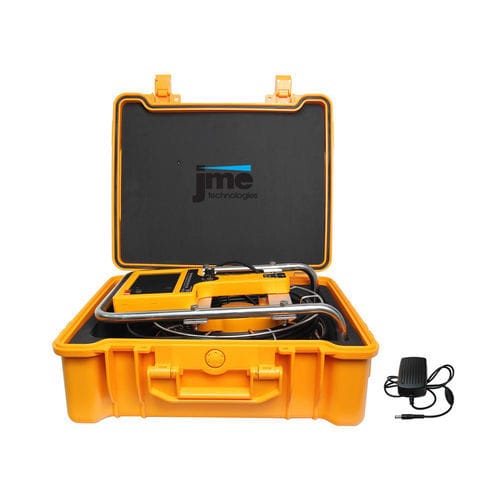

The JPC-23 is a robust video borescope push camera system to access pipes in lengths up to 40m long. (66 to 130 feet). It is versatile with interchangeable heads ranging in 23 mm diameter is standard with optional 17 and 28mm. The 23mm camera is IP68 , has 12 white LEDs, 105 degree FOV and focal length of 20-80mm. Cameras are available with and without transmitter, receiver optional. The portable and lightweight handlheld 7” TFT monitor is battery operated running approx. 7 hours on a single charge making it a tool for the field. Capture full high quality HD images and video. To the onboard SD card (256GB max.) Connect to a larger monitor directly via HDMI cable. Key Features: Interchangeable cameras Lengths up to 40m Records video and still images Built in transmitter option Adjustable light intensity Long charge life 1 year warranty 12mm camera head 1/4 inch sensor size 65o view angle 6pcs white LEDs Waterproof level: IP68 50mm manual focus camera head 1/3 inch CCD sensor 90o view angle 6pcs white LEDs Manual focus function focus distance: 20mm ~ infinite Self-leveling function Waterproof level: IP68 23mm HD camera head 1/3 inch sensor 90o view angle 12pcs white highlight LEDs Resolution: 1280*720 pixels Waterproof level: IP68 23mm self-leveling camera head 60o view angle 12pcs white highlight LEDs Self-leveling function Clearness range: 70~240mm Waterproof level: IP68
