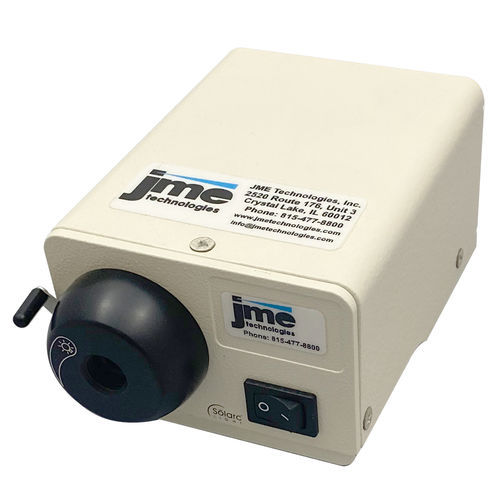

Endoscope light source LS24lampvisiblecompact
Add to favorites
Compare this product
Characteristics
- Illumination technology
- lamp
- Spectrum
- visible
- Other characteristics
- compact, benchtop
- Technical applications
- for endoscopes
- Output power
24 W
(0.03263 hp)
Description
Illuminating system:
Lamp: 24watt
Light output: 590 lumens
Color Temperature: 5,000k
Lamp life: 500 hours
Integral life: 0-100% attenuation
Physical:
Dimensions: 147.3 mm [5.8 length x 88.9 mm [3.5 weight x 71.1 [2.8 height
Weight: 1.0 kg (2.2 lbs)—includes power supply 0.5 kg (1.2 lbs)—device only
Electrical
Power Supply
Input Voltage: 100 to 240 VAC, 50-60 Hz
Input Current: 1 A @ 100 VAC
Output: 12 VDC, 3.4 A
Device Only
Input Voltage: 12 VDC
Connector Type: 2.1 mm [0.08 x 5.5 mm [0.22 Center Positive Jack (ref. Switchcraft 722A)
ACCESSORIES
LB-24 bulb
Power supply
