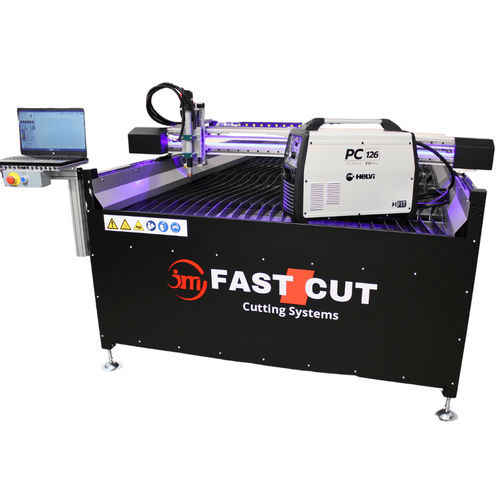

Plasma cutting machine Fast-Cut 3015
oxyacetyleneby heatingfor metal

Plasma cutting machine - Fast-Cut 3015 - JMSCOLPITORI - oxyacetylene / by heating / for metal
Plasma cutting machine - Fast-Cut 3015 - JMSCOLPITORI - oxyacetylene / by heating / for metal
Plasma cutting machine - Fast-Cut 3015 - JMSCOLPITORI - oxyacetylene / by heating / for metal - image - 2
Plasma cutting machine - Fast-Cut 3015 - JMSCOLPITORI - oxyacetylene / by heating / for metal - image - 3
Plasma cutting machine - Fast-Cut 3015 - JMSCOLPITORI - oxyacetylene / by heating / for metal - image - 4
Plasma cutting machine - Fast-Cut 3015 - JMSCOLPITORI - oxyacetylene / by heating / for metal - image - 5
Plasma cutting machine - Fast-Cut 3015 - JMSCOLPITORI - oxyacetylene / by heating / for metal - image - 6
Plasma cutting machine - Fast-Cut 3015 - JMSCOLPITORI - oxyacetylene / by heating / for metal - image - 7
Plasma cutting machine - Fast-Cut 3015 - JMSCOLPITORI - oxyacetylene / by heating / for metal - image - 8
Add to favorites
Compare this product

Characteristics

Technology
plasma, oxyacetylene, by heating
Material
for metal, for aluminium foil
Product handled
sheet metal, profile
Control type
with control software
Associated function
engraving, marking, drilling, contour
Applications
for industrial applications, for metal fabrication, for construction machinery, for industrial vehicles
Workpiece loading
manual loading
Phase
three-phase
Configuration
compact, large-format, 2D, 3-axis
Other characteristics
high-precision, automatic, high-speed, precision, CE, high-efficiency, economical, for steel construction, for structural profiles, programmable, electric, rack-and-pinion
X travel

3,000 mm
(118.11 in)

Y travel

1,500 mm
(59.06 in)

Z travel

160 mm
(6 in)

Maximum cutting height

150 mm
(5.9 in)

Minimum cutting height

1 mm
(0.04 in)

Cutting speed

1,200 mm/min, 9,000 mm/min
(0.787 in/s, 5.906 in/s)

Repeatability

0.5 mm
(0.0197 in)

Operating pressure

Min.: 6.5 bar
(94.27 psi)

Overall length

3,450 mm
(136 in)

Maximum width

2,000 mm
(79 in)

Height

1,780 mm
(70 in)

Weight

820 kg
(1,807.79 lb)

Power supply

220 V

Description

Precision and Speed ​​in High Efficiency Plasma Cutting The ideal choice for projects where time is a critical factor. Fast-Cut is the complete solution for metal cutting with simplified programming. Increase the productivity of your shop right away. ​Our “Fast Cut” is more than just a “plug & play” plasma table; it is the definitive solution in the thermal cutting sector. This machine is designed to offer precision cuts at high speeds, all at an affordable investment. Key Features The “Fast Cut” is the answer to your affordable metal cutting needs. With precision, speed, efficiency and integrated AI assistance, it is the ideal solution for those looking for high-level performance without compromising the budget. Robustness and Quality The resistant frame and attention to detail in the design make it an excellence in its category. We use quality components and accessories to guarantee reliable performance over time. Versatility The “Fast Cut” is ideal for cutting metal sheets in carpentry steel, stainless steel, aluminum and much more. Thanks to the Helvi generator and the wide range of consumables, including the Precision Cut, it offers precise and reliable cutting results. Ease of Use The intuitive operator PC allows you to monitor the machine and set the cutting parameters easily and quickly. The complete software, equipped with automatic Nesting, is suitable for all operators and meets all needs.
