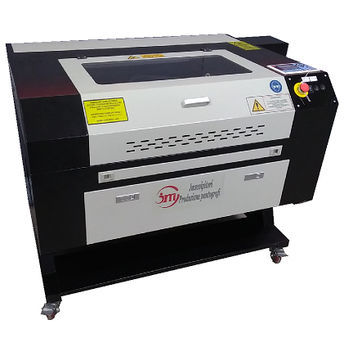

CO2 laser cutting machine LW series
for plasticsfor woodtextile

CO2 laser cutting machine - LW series - JMSCOLPITORI - for plastics / for wood / textile
CO2 laser cutting machine - LW series - JMSCOLPITORI - for plastics / for wood / textile
CO2 laser cutting machine - LW series - JMSCOLPITORI - for plastics / for wood / textile - image - 2
CO2 laser cutting machine - LW series - JMSCOLPITORI - for plastics / for wood / textile - image - 3
CO2 laser cutting machine - LW series - JMSCOLPITORI - for plastics / for wood / textile - image - 4
Add to favorites
Compare this product

Characteristics

Technology
CO2 laser
Material
for plastics, for wood, textile, for leather, for cardboard
Control type
CNC
Associated function
engraving, marking, contour
Applications
for industrial applications, for the electronics industry, for industrial vehicles, for kitchenware industry, for the plastics industry, for upholstery
Workpiece loading
manual loading
Phase
single-phase
Configuration
gantry type, 2D, with fixed table
Other characteristics
automatic, precision, CE, with water cooling, for small parts, for the printing industry
X travel

280 mm, 700 mm, 900 mm
(11.02 in, 27.56 in, 35.43 in)

Y travel

190 mm, 500 mm, 600 mm
(7.48 in, 19.69 in, 23.62 in)

Z travel

200 mm
(8 in)

Minimum cutting height

0 mm
(0 in)

Cutting speed

Max.: 48,000 mm/min
(31.496 in/s)

Min.: 0 mm/min
(0 in/s)

Laser power

Max.: 130 W

Min.: 60 W

Overall length

850 mm, 1,460 mm, 1,500 mm, 1,750 mm
(33 in, 57 in, 59 in, 69 in)

Maximum width

500 mm, 860 mm, 1,050 mm, 1,100 mm
(20 in, 34 in, 41 in, 43 in)

Height

300 mm, 950 mm, 1,000 mm, 1,100 mm
(12 in, 37 in, 39 in, 43 in)

Weight

60 kg, 90 kg, 130 kg, 250 kg
(132.28 lb, 198.42 lb, 286.6 lb, 551.16 lb)

Power supply

220 V

Description

For precision work with extreme cutting speed. CO2 Laser Cutting Machines: Versatility, Precision and Creativity Precision Technology for Various Applications. Our CO2 laser cutting machines are the ideal solution for a wide range of applications, ensuring versatility, precision and the possibility to unleash your creativity. Thanks to the advanced CO2 laser technology, we ensure high-quality cutting results and impeccable details on a variety of materials, including wood, plastic, leather, cardboard, fabrics, stamps and much more. Key Features The key features of our Laser Cutting machines include: - Precision on Various Materials Our CO2 laser cutting technology offers exceptional precision on a wide range of materials, allowing you to create detailed projects with ease. - Large Working Area Our machines are equipped with a large working area, allowing you to handle projects of different sizes with comfort. - Ease of Use with Intuitive Software Thanks to our intuitive software, the operation of the machines is simple and accessible even for beginners. You can start creating in just a few steps. -Project Customization Our machines offer extensive opportunities for project customization. You will be able to create unique and personalized objects for your needs. -Support for a Wide Range of Materials In addition to the materials mentioned, our machines support a wide range of other creative options.
