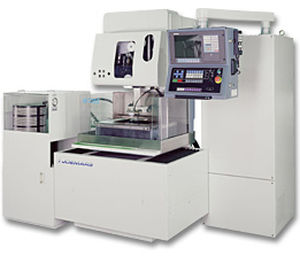

Wire electrical discharge machine max. 710 x 560 x 205 mm | WT 355CNC
Add to favorites
Compare this product
Characteristics
- Type
- wire
- Other characteristics
- CNC
Description
Max. work piece dimonsin (WxDxH) mm 710 x 560 x 205
Max. work piece weight kgs 300
X travel mm 350
Y travel mm 250
Z travel mm 210
U travel mm 80
V travel mm 80
Drive system AC servo motor
Wire diameter mm
0.15~0.30(Standard )
0.10 (optional)
Max. taper angle 24o / 80mm
Outside dimension (WxDxH) mm 1170 x 1730 x 1990
Machine net weight kgs 2100
