handheld bending machine / manual / for tubes / cold
WB 100/E

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
handheld bending machine handheld bending machine - WB 100/E
{{requestButtons}}

Characteristics

  • Configuration:

    handheld

  • Operation:

    manual

  • Product handled:

    for tubes

  • Other characteristics:

    cold

  • Bending capacity:

    18 mm, 30 mm (1 in)

Description

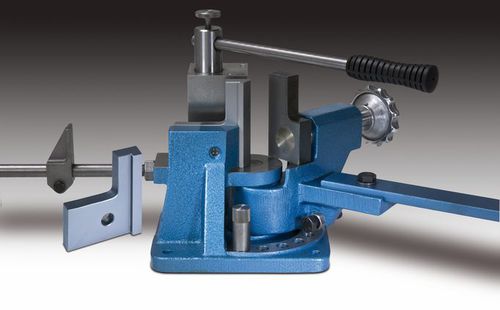

This Angle Bender satisfies your highest demand, for professional use.
Angle bending up to 125° and "U" bends from 8 mm inside width upwards.
The base and bend arm are made from high tensile spheroidal graphite iron with a higher bending resistance than steel - this means that the counter block can be thin and thus allow narrow "U" bends to be achieved.
An eccentric clamping block allows quick changes for various material thicknesses. The pressure jaw is supported on a rigid threaded spindle and to accomodate narrow "Z" bends the bend arm has been placed belos the bending level. Bend jaws are of hardened tool steel and are suitable for both cold and hot bending.
A pin-type angle stop and adjusting screw give any required setting from 0 - 125 °.
