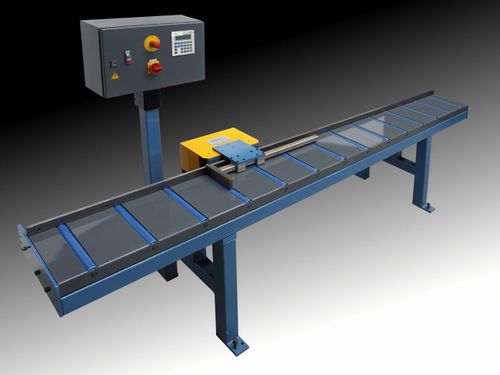

stop unit for conveyor

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
stop unit for conveyor stop unit for conveyor
{{requestButtons}}

Description

Industrial practice is more and more characterised by demands, that small and middle quantities of pieces are required, where an operator has to feed to an exact position of a sawing machine, drilling machine, welding machine, milling machine or punch.

Technical Data
Welded steel construction
After welding milled at the connection for linear guides and dented rail to achieve optimum straightness
Length stop system with linear guide on one side
Feeding system with linear guide on both sides of roller table
max. speed ca. 1000 mm/ sec.
Motor AC-Servo with planet gearing
For length stop with belted rail with steel inlay
For feeding system with high precision dented rail
Accuracy +/- 0,1 mm/m
Program storage 99 programs with 800 NC sentences
Roller diameter 50 mm, material plastic with maintenance free bearings
Rollers 300 mm
Distance between rollers coverd by sheets
