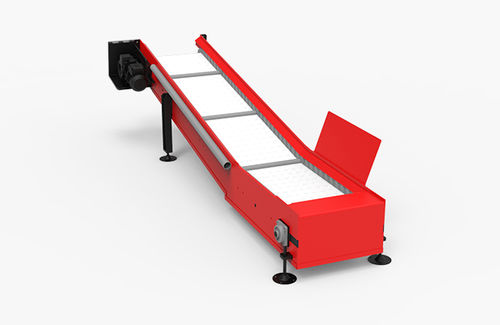

Plate conveyor belt

flexiblestainless steelsteel

The robust and flexible solution for your conveying needs. The design of our Hinged Belt Conveyors and Hinged Plate Belts aims for high durability and thus optimal productivity of your production plant. We also deliver various accessories for example: Swivel slides and multi-track switches. We offer complex, large collecting systems for scrap disposal that are specially designed for fully automated filling of scrap containers, including container swapping systems. The skeletal frame structure used in these systems, along with the use of rotational brushes or vibration drives that clean the belt ensure easy maintenance and consistent operation. In heat treatment processes, Steel Hinged Belt Conveyors are used as immersion-bath conveyors for lighter weight drop forged parts (e.g. screws, bevel wheels or bearing rings ranging from 2-11 lbs. per piece) in water-, emulsion-, and oil quenching baths. Our Hinged Belt Conveyors for the disposal of die casting waste are designed to prevent die casted parts (that often feature very sharp, pointed edges) from getting caught or trapped. The gap sizes are designed to be very small, and the hinged belt surface is even and level. Circulating side wings limit the effective belt width. At the conveyor discharge end, a height and tilt adjustable separating roll is placed above an angled sliding surface. The roll lets small parts pass through, while larger components are conveyed laterally to be discharged along the side.
