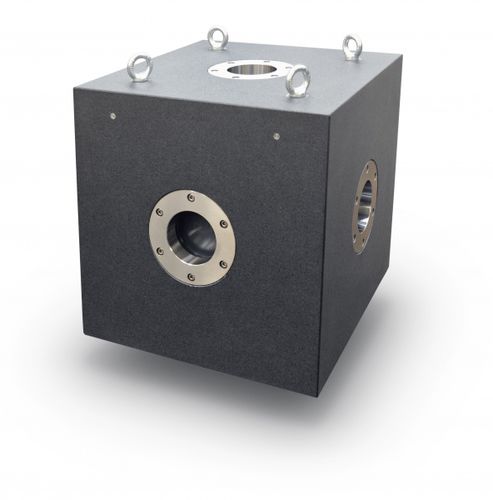

Surface calibration equipment

high-precision

Best suitable for simple but very precise check of path accuracy and postioning accurcy of co-ordinate measuring machines - CMMs - and machine tools. E.g. check of positioning accuracy of rotary tables of machining centres. Design / Working The precise-worked faces are finest ground and lapped. Tailor-made versions. Accuracies - flatness, parallelism and rectangularity - to requests of customers. Execution example 5-sides precise - 0,003 mm. The top surface and the 4 side surfaces are flat, parallel and rectangular within 0,003 mm, finest ground and lapped. Calibration certificate A test certificate is part of scope of delivery. Measuring results are rectraceable to National standards. On demand, a factory calibration certificate or a calibration certificate according to DAkkS will be included in the delivery. Accessories >Precision bore holes and gauge rings according to customers requirements. >Case for secure storage and transport. >Suspension-devices with ring screws. >Elements for settlement and alignment.
