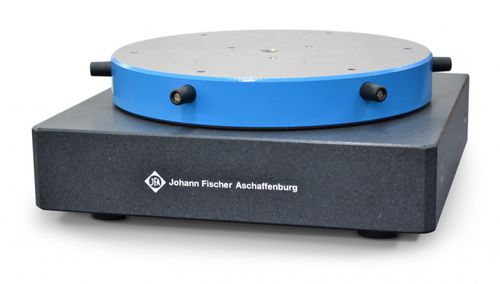

Rotary positioning table RT series

linear servo-motorpiezomulti-axis

Designed to fulfill high precise measuring tasks. The rotary unit is antifriction beared, free of play. Distinguished stiffness. Encoder with high resolution grant for high positioning accuracy. RT-350 With piezo drives. Best suited as rotational axis of CT-measurement systems, because the low magentic field intensities of used materials. Options: >pneumatic clamping of rotation >splash guard RT-500 With torque drive. The advantageous construction enables the RT-500 for the application as rotational axis in multi-axis-sytems. Options: >pneumatic clamping of rotation >splash guard >worm gear drive with servo drive RT-1500 With servo drive. Air bearing in axial direction. Base plate and rotary table are of natural hardstone, granite. Due to automatic regulation, the air gap will be held constant at various weight loadings. Options: >pneumatic clamping of rotation >splash guard >angle encoder >manual adjustment
