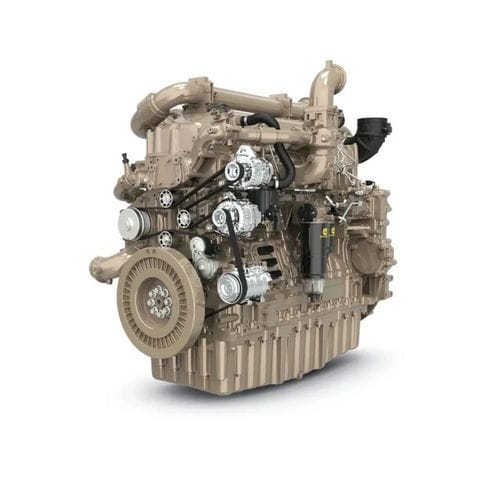

Diesel engine JD18X 6-cylinderturbochargedin-line
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 6-cylinder
- Technology
- turbocharged, common rail, in-line, high-pressure HPCR
- Product applications
- for heavy-duty applications
- Cooling system
- air cooling
- Emissions level
- Tier 4, Stage V
- Other characteristics
- cooled by exhaust gas recirculation
- Power
Max.: 677 kW
(920.46 hp)Min.: 522 kW
(709.72 hp)- Torque
Max.: 4,250 Nm
(3,134.639134 ft.lb)Min.: 3,317 Nm
(2,446.493649 ft.lb)- Rotational speed
1,900 rpm
(11,938.0521 rad.min-1)- Displacement
18 l
(4.755 gal)- Weight
2,119 kg
(4,671.6 lb)- Length
1,750 mm
(68.9 in)- Width
920 mm
(36.2 in)- Height
1,507 mm
(59.3 in)
Description
John Deere's next generation engines are simple to integrate, easy to service, and share many common maintenance parts.
Extended Power Range
With an extended power range of 522 - 677 kW (700 - 908 hp), the option for up to two rear auxiliary drives produces a total of 902 Nm (665 lb-ft) maximum torque.
Fluid Management
The JD18 features new combustion technology to meet emissions regulations without requiring aftertreatment, eliminating the need for DEF and reducing fluid management. The high-pressure common rail (HPCR) fuel system allows the engine to deliver optimized fluid consumption.
Serviceability and Repairability
Designed with ease of service and repair in mind, the JD18 boasts hydraulic lash adjusters that offer a maintenance-free valve train. Improved John Deere model-based controls offer better diagnostic capabilities, more easily and accurately diagnosting the the target source of engine performance issues and reducing downtime.
- EPA Final Tier 4/EU Stage V
- Exceptional Power, Ultimate Performance
- No Aftertreatment
Extended Power Range
With an extended power range of 522 - 677 kW (700 - 908 hp), the option for up to two rear auxiliary drives produces a total of 902 Nm (665 lb-ft) maximum torque.
Fluid Management
The JD18 features new combustion technology to meet emissions regulations without requiring aftertreatment, eliminating the need for DEF and reducing fluid management. The high-pressure common rail (HPCR) fuel system allows the engine to deliver optimized fluid consumption.
Serviceability and Repairability
Designed with ease of service and repair in mind, the JD18 boasts hydraulic lash adjusters that offer a maintenance-free valve train. Improved John Deere model-based controls offer better diagnostic capabilities, more easily and accurately diagnosting the the target source of engine performance issues and reducing downtime.
