Diesel engine 9.0X IHR
6-cylinderTier 4

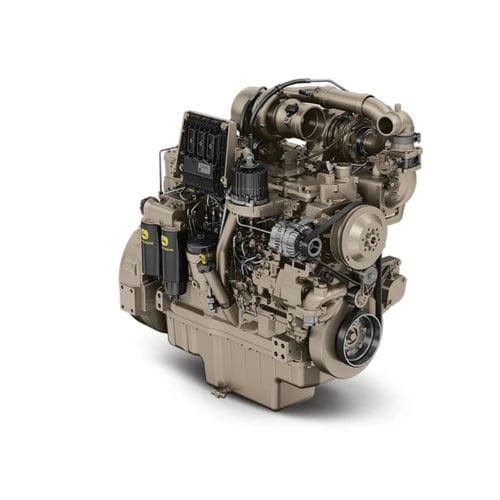

Diesel engine - 9.0X IHR - JOHN DEERE POWER SYSTEMS - 6-cylinder / Tier 4
Diesel engine - 9.0X IHR - JOHN DEERE POWER SYSTEMS - 6-cylinder / Tier 4
Diesel engine - 9.0X IHR - JOHN DEERE POWER SYSTEMS - 6-cylinder / Tier 4 - image - 2
Diesel engine - 9.0X IHR - JOHN DEERE POWER SYSTEMS - 6-cylinder / Tier 4 - image - 3
Diesel engine - 9.0X IHR - JOHN DEERE POWER SYSTEMS - 6-cylinder / Tier 4 - image - 4
Diesel engine - 9.0X IHR - JOHN DEERE POWER SYSTEMS - 6-cylinder / Tier 4 - image - 5
Add to favorites
Compare this product
Go to the JOHN DEERE POWER SYSTEMS website for more information

Characteristics

Type
diesel
Number of cylinders
6-cylinder
Emissions level
Tier 4
Power

Max.: 317 kW
(431 hp)

Min.: 187 kW
(254.25 hp)

Torque

Max.: 1,685 Nm
(1,242.792222 ft.lb)

Min.: 1,120 Nm
(826.069607 ft.lb)

Rotational speed

Max.: 2,200 rpm
(13,823.0077 rad.min-1)

Min.: 2,000 rpm
(12,566.3706 rad.min-1)

Displacement

9 l
(2.378 gal)

Weight

1,097 kg
(2,418.47 lb)

Length

1,326 mm
(52.2 in)

Width

879 mm
(34.6 in)

Height

1,266 mm
(49.8 in)

Description

John Deere industrial diesel engines are built with responsive power to give you fluid efficiency and day-to-day reliability. EPA Final Tier 4/EU Stage V Excellent Performance And Responsiveness DOC/DPF/SCR Premium Choice Engines provide a powerful combination of power density, performance, and fluid efficiency. Ultimate Performance All displacements feature series turbochargers to deliver excellent performance and responsiveness. Proven Aftertreatment PowerTech™ PSS engines feature proven PowerTech™ Plus technology that includes a DOC/DPF and an SCR system designed specifically for off-highway applications.
