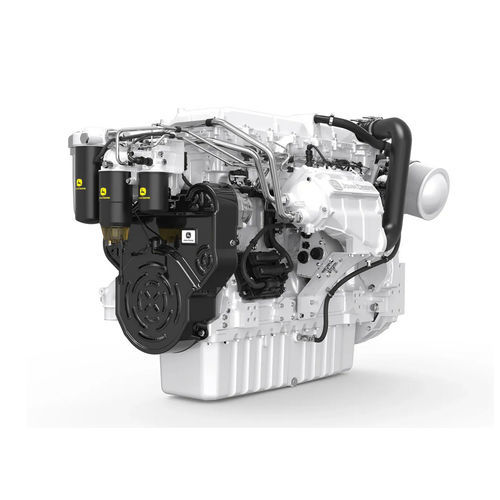

Diesel engine JD14P MLR
6-cylindercommon-railpump

Diesel engine - JD14P MLR - JOHN DEERE POWER SYSTEMS - 6-cylinder / common-rail / pump
Diesel engine - JD14P MLR - JOHN DEERE POWER SYSTEMS - 6-cylinder / common-rail / pump
Diesel engine - JD14P MLR - JOHN DEERE POWER SYSTEMS - 6-cylinder / common-rail / pump - image - 2
Diesel engine - JD14P MLR - JOHN DEERE POWER SYSTEMS - 6-cylinder / common-rail / pump - image - 3
Diesel engine - JD14P MLR - JOHN DEERE POWER SYSTEMS - 6-cylinder / common-rail / pump - image - 4
Diesel engine - JD14P MLR - JOHN DEERE POWER SYSTEMS - 6-cylinder / common-rail / pump - image - 5
Diesel engine - JD14P MLR - JOHN DEERE POWER SYSTEMS - 6-cylinder / common-rail / pump - image - 6
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
common-rail
Product applications
pump, marine
Power

Max.: 448 kW
(609.11 hp)

Min.: 298 kW
(405.17 hp)

Rotational speed

Max.: 2,100 rpm
(13,194.6891 rad.min-1)

Min.: 1,800 rpm
(11,309.7336 rad.min-1)

Displacement

13.6 l
(3.593 gal)

Weight

1,436 kg
(3,165.84 lb)

Length

1,750 mm
(68.9 in)

Width

1,128 mm
(44.4 in)

Height

1,192 mm
(46.9 in)

Description

John Deere marine propulsion engines build power faster for cruising at higher speeds with lower rpm. Keel-cooled Or Heat Exchanger Configurations IMO Tier 2 EPA Tier 3 RCD 2 Propelled Performance Powerful Performance JD14 engines have higher duty cycles and more power than John Deere 13.5L models. High-pressure common-rail (HPCR) provides flexible injection timing and excellent efficiency. Low Maintenance Longer oil change service intervals up to 500 hours when you use John Deere Plus-50™ II engine oil. Rigid bronze impeller on seawater pump with up to 10,000 hour life before needing maintenance. Hydraulic automatic valve lash adjustment improves durability and eliminates valve lash maintenance. Machine Availability John Deere Connected Support™ remote monitoring and diagnostics come standard. It provides protection and efficiency with no subscription fees or ongoing expenses.
