Multi-channel manifold JGUFHMAN series

stainless steelfor temperature control circuitsfor underfloor heating

Product overview

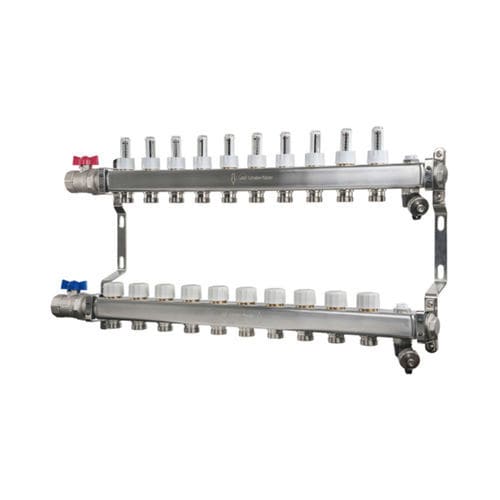

JG Euroconus manifold with ball valves and integral manual air vent centralises underfloor heating pipework and distributes warm water through the system to provide even and comfortable heat.

Construction and installation
Made from stainless steel and manufactured to high standards. Fast and simple to install with a pre-fitted wall bracket and vibration isolation mount. Supplied complete with ball valves, an integral manual air vent and a drain/fill valve. Pre-assembled flow rate indicators are provided for adjusting flow and isolating pipe circuits. The return bar includes an integral control valve with protection cap that can be removed to accept a Manifold Thermoelectric Head for remote zone control.

Features and benefits

• Stainless steel manifold construction
• Pre-fitted wall bracket and vibration isolation mount
• Supplied with red and blue 1" brass ball valves for isolating components, facilitating maintenance and repair
• Complete with manual air vent, drain/fill valve and adjustable flow meters
• Manifold connections compatible with Euroconus fittings and a range of pipe diameters and wall thicknesses (Euroconus fittings sold separately)
• Return manifold valves accept a Manifold Thermoelectric Head for remote zone control
• Intended for underfloor heating (UFH) applications only

Product variants
SKU | Description | MBSP (inlet) | MBSP (outlet) | Ports
JGUFHMAN10E | JG Underfloor Stainless Steel 10 Port UFH Manifold | 3/4 | 1 | 10
JGUFHMAN11E | JG Underfloor Stainless Steel 11 Port UFH Manifold | 3/4 | 1 | 11
JGUFHMAN12E | JG Underfloor Stainless Steel 12 Port UFH Manifold | 3/4 | 1 | 12
JGUFHMAN2E | JG Underfloor Stainless Steel 2 Port UFH Manifold | 3/4 | 1 | 2
JGUFHMAN3E | JG Underfloor Stainless Steel 3 Port UFH Manifold | 3/4 | 1 | 3
JGUFHMAN4E | JG Underfloor Stainless Steel 4 Port UFH Manifold | 3/4 | 1 | 4
JGUFHMAN5E | JG Underfloor Stainless Steel 5 Port UFH Manifold | 3/4 | 1 | 5
JGUFHMAN6E | JG Underfloor Stainless Steel 6 Port UFH Manifold | 3/4 | 1 | 6
JGUFHMAN7E | JG Underfloor Stainless Steel 7 Port UFH Manifold | 3/4 | 1 | 7
JGUFHMAN8E | JG Underfloor Stainless Steel 8 Port UFH Manifold | 3/4 | 1 | 8
JGUFHMAN9E | JG Underfloor Stainless Steel 9 Port UFH Manifold | 3/4 | 1 | 9

Application, purpose and compatibility
Application: Suitable for underfloor heating applications only.
Purpose: Centralises underfloor heating pipework and distributes warm water through the system.
Compatibility: Suitable for use with multilayer, PERT and PEX pipe.
Guarantee: 2 year guarantee.

Caractéristiques / spécifications techniques

• Material: Stainless steel manifold construction
• Includes: Pre-fitted wall bracket, vibration isolation mount, red and blue 1" brass ball valves, integral manual air vent, drain/fill valve
• Flow control: Pre-assembled adjustable flow rate indicators on flow manifold
• Return connections: Integral control valve with protection cap; removable to accept Manifold Thermoelectric Head
• Connections: Euroconus-compatible manifold connections (Euroconus fittings sold separately)
• Intended use: Underfloor heating (UFH) systems only
• Warranty: 2 year guarantee
