Film impulse sealer Fermant NC BG LH 2020
foot-operatedhorizontalsachet

film impulse sealer
film impulse sealer
Add to favorites
Compare this product


Characteristics

Operating mode
foot-operated
Orientation
horizontal
Product applications
sachet, for film
Product applications
for packaging
Other characteristics
with touchscreen controls
Weld length

800 mm
(31.5 in)

Weld width

4 mm
(0.16 in)

Description

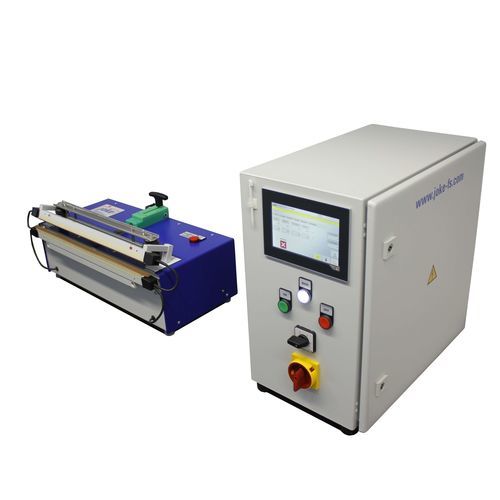

Film sealing machine For vacuuming and gassing film bags with a barrier layer. The individual times for suction and gassing, as well as frequency, can be set as needed. The bag is held over a special clamping bar during the work cycle clamped and sealed. Construction: 1) Fermant: - The clamping bar behind the sealing bars is operated by a separate vacuum pump inside the Fermant. - Indicator light cycle end in the housing cover - Solenoid valve on the rear of the housing to switch from gassing to suction - Standard foot switch 2) Control and vacuum control cabinet: - Touch screen display for setting all sealing parameters - Selector switch with 4 levels: 1: sealing 2: suction + sealing 3: Suction + gassing + suction 4: gassing + suction + gassing + suction - Cycle times can be set on the display - Vacuum pump for air extraction - Fermant- Control cabinet cable length: 3 meters Technical specifications: ------------------------ Gassing time: digitally adjustable Heating: pulse-heated on both sides Operation: electric magnets Suction time: digitally adjustable Technical data • Fuse : 16 A, slow-blow • Connected Voltage : 230 V • Operating : Foot switchmanual operationTouchscreen LCD Display • Film passage : 800 mm • Impulse time : continuously digitally adjustable • Cooling time : continuously digitally adjustable • Range of action : 40 mm • Bar opening : 25 mm • Degree of protection : IP 20 • Max. sealing output : 2 x 0,4 mm PE-Foil • Sealing length : 800 mm • Control : SPS
