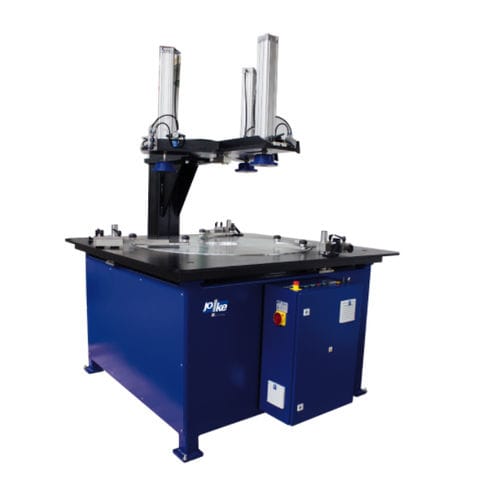

Polishing lapping machine EL 1200

for processingpneumatic

Polishing and lapping machine joke EL 1200 The series EL 380 to EL 1200 polishing and lapping machines from joke have stood for quality and reliability for professional use, incl. “Made in Germany” machine building, for many years. The EL 380 has been specially developed for processing small workpieces and individual components in small series. This variant has been successfully used for many years in laboratories and research institutes, etc. The series EL 380 machines can be equipped with a pendulum arm. Furthermore, a base unit is optionally available or it can be positioned on an appropriate table. The large EL 600 to EL 1200 machines are designed for serial production. The highly robust machines in the conventional EL series have a comparatively low acquisition price. All machines feature infinitely variable speed control as standard and a pneumatic contact pressure device is available as an accessory. Device dimensions (W x H x D): - 1.775 x 1.720 x 950 mm Power: - 7.5 kW Power consumption: - 9,400 W Supply voltage: - 3 x 400 V, 50/60 Hz Weight: - approx. 2,700 kg Matching dressing ring inner-Ø: - Ø 480 mm Cooling: - no Fuse protection: - 25 A, slow blow Lapping agent waste tank volume: - 12 l matching lapping disc dimensions: - Ø 1.200 mm / 47" Number of roller yokes: - 3
