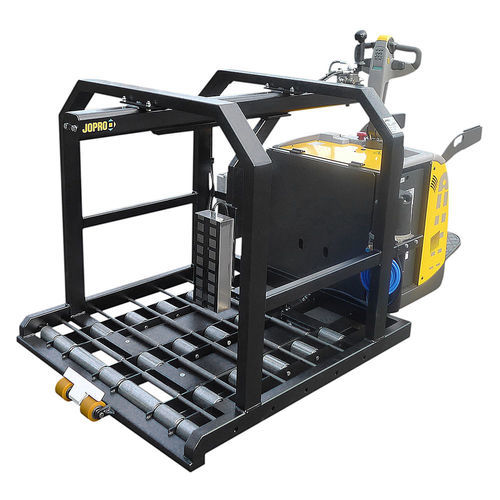

Electric battery tugger

industrialfor forklift truckshandling

This battery tugger is designed for handling extra-wide batteries, primarily on 80V forklifts. The operator remains on the platform throughout the battery change, ensuring excellent visibility and safe, controlled operation.

All functions are operated via a single joystick with intuitive controls, while a hydraulic locking device secures the battery during transport. A powerful electromagnet ensures reliable battery handling.

A complete battery change takes just 3–5 minutes, maximizing fleet uptime and productivity.

Key Benefits

Fast battery changes in 3–5 minutes
Operator remains on the platform throughout operation
Safe, reliable, industrial-grade performance

Features

Single joystick with intuitive controls and dead-man safety function
Hydraulic battery lock for safe transport
Powerful electromagnet for secure battery gripping
Designed for mounting on powered pallet trucks with 1150 mm forks

Specifications

Max battery weight: 2500 kg
Max battery length: 1050 mm
Max battery width: up to 1100 mm
Battery height range: 500–900 mm
Roll-out height: 120–230 mm (higher options available)
