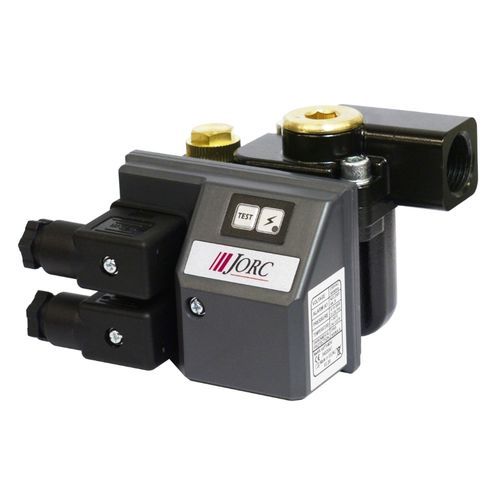

Drainage device KAPTIV-MD-AL-MULTI

Overview
Electronic condensate drain. The level-sensed KAPTIV-MD-AL-MULTI handles up to 10 m³/min and is designed for tight spaces and maximum installation flexibility. Suited for smaller compressed-air applications, it features an optional alarm output and a compact footprint ideal for refrigerated dryers and filters. Multiple inlets increase installation options.

Features

• Zero air loss during condensate discharge
• Visual alarm (power LED) indication
• Optional alarm output N/O or N/C (potential-free relay)
• Low inlet height for easy installation
• External valve construction for fast, easy maintenance
• Direct-acting valve with FPM seal
• Corrosion-resistant aluminium housing with EP coating
• Large integrated mesh strainer protecting the valve
• Optional drain heater for cold-weather use
• Version without alarm available on request

Specifications
Max. compressor capacity: 10 m³/min (350 CFM) regardless of climate zone
Max. drainage capacity: 45 L condensate/hour at 16 bar (230 psi)
System pressure range: 0–16 bar (up to 230 psi)
Medium temperature range: 1–60 °C (34–140 °F)
Ambient temperature range: 1–60 °C (34–140 °F)
Supply voltage options: 230 VAC / 115 VAC / 24 VAC / 24 VDC
Enclosure protection: IP65 (NEMA 4)
Connector type (power and alarm): DIN 43650-B
Inlet connection: 1/2” (BSP or NPT)
Inlet height: 74 mm (2.95 in)
Side inlet adapter: Optional
Outlet connection: 1/4” (BSP) with brass hose barb adapter
Valve type: 2/2-way direct acting
Valve orifice: 2 mm (0.08 in)
Valve seals: FPM
Serviceable valve: Yes
Integrated mesh strainer: Yes
Housing material: Corrosion-resistant aluminium, EP coating
Test feature: Yes
Visual alarm: LED (power) on the drain
Alarm A1 (N/O): Normally open potential-free relay output contact
Alarm A2 (N/C): Normally closed potential-free relay output contact

Characteristics / technical specifications

• Max. compressor capacity: 10 m³/min (350 CFM)
• Max. drainage capacity: 45 L/h @16 bar (230 psi)
• System pressure: 0–16 bar
• Medium & ambient temperature: 1–60 °C (34–140 °F)
• Supply voltages: 230 VAC, 115 VAC, 24 VAC, 24 VDC
• Protection: IP65 (NEMA 4)
• Inlet: 1/2” (BSP or NPT); inlet height: 74 mm
• Outlet: 1/4” (BSP) with brass hose barb adapter
• Valve: 2/2-way direct acting, 2 mm orifice, FPM seals, serviceable
• Housing: corrosion-resistant aluminium with EP coating
• Integrated mesh strainer; optional side-inlet adapter
• Optional alarm (N/O or N/C) with LED indication
