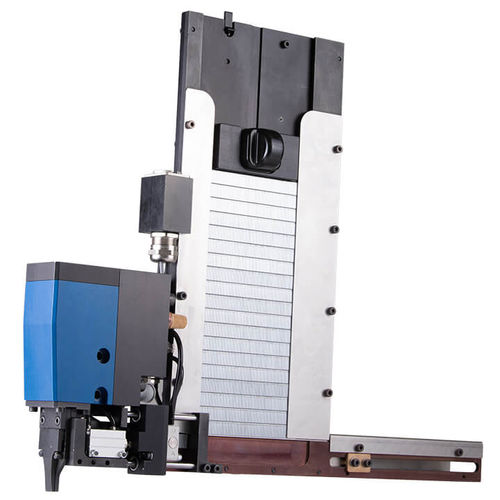

Pneumatic stapling machine

electricfor production linesmagazine

JK A-Fast A1H680 automation fastening system is built for 24/7 operations with a flawless uptime. The high loading magazine capacity model H is excellent for production lines where a lot of material needs to be processed without stops for reloading. The unit has a high firing rate up to 750 rounds per minute supported by a continuous reloading cylinder. Moreover, the unit has a magazine sensor for full control over loading status and a feeding controller for full control of staple consumption. It´s durable with top of the line quality components engineered together for perfect performance and use a single connector for all functions. Making the system easy to integrate and operate in any production line. It is available in both pneumatic and electric actuation. Read more about our automated fastening systems. Technical Data Article No. 126511 Weight 6 kg ( 13.2 lbs ) Dimensions 484 × 78 × 398 mm ( 19.1 x 3.1 x 15.7 in ) Magazine capacity 2860 - 6578 fasteners Staple leg length 6 - 14 mm ( 1/4 - 9/16 in ) Max. pressure 7 bar ( 102 psi ) Nose length 21.5 mm ( 0.8 in ) Speed (actuation time) 50 ms Power supply 24V DC, sensor type PNP Working pressure 5 - 6 bar ( 70 - 90 psi ) Actuation Electric or pneumatic Electric connector Yes Magazine sensor Yes Feeding controller Yes Continuous reloading cylinder Yes Nose length 21.5 mm ( 0.8 in )
