High-temperature heat pump JDHS

low CO2 emissionsenergy saving

Features

• Full-system integrated design
• AIoT Smart Hub for remote monitoring and control
• Modular plug-and-play architecture
• Technology pathway oriented to low-carbon operation

Overview

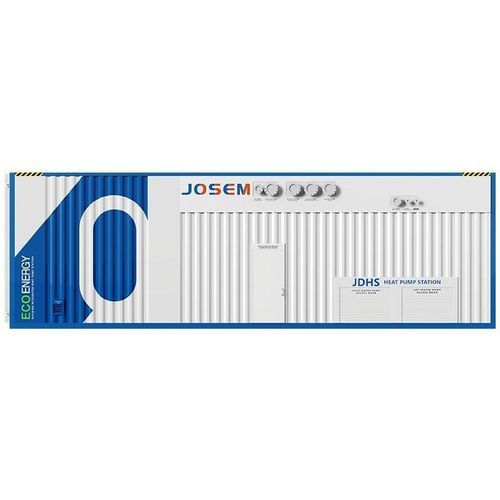

The JDHS Integrated High-Temperature Heat Pump Station is an energy-saving, fully integrated heat pump solution developed by Josem Environment for industrial high-temperature HVAC and dehumidification applications. It is engineered to replace traditional boiler-room arrangements by reducing system fragmentation, shortening engineering cycles and lowering operational carbon footprint and costs while providing reliable temperature and humidity control for demanding processes.

Product details
Place of origin: CHINA
Brand name: JOSEM
Model number: JDHS
General dimensions (range): L: 10000–14000 mm; W: 4000–4500 mm; H: 4000–4500 mm

Models and key dimensions
Header: Model Code / Dimensions (mm L x W x H) / Connection Port Dimensions (mm)
JDHS007H | 10000 x 4000 x 4000 | DN1:150, DN2:150, DN3:125, DN4:125
JDHS004D | 10000 x 4000 x 4000 | DN1:150, DN2:150, DN3:125, DN4:125
JDHS012H | 10000 x 4000 x 4000 | DN1:250, DN2:250, DN3:150, DN4:150
JDHS007D | 10000 x 4000 x 4000 | DN1:250, DN2:250, DN3:150, DN4:150
JDHS016H | 14000 x 4500 x 4500 | DN1:250, DN2:250, DN3:150, DN4:150
JDHS010D | 14000 x 4500 x 4500 | DN1:250, DN2:250, DN3:150, DN4:150
JDHS029H | 14000 x 4500 x 4500 | DN1:300, DN2:300, DN3:250, DN4:250
JDHS018D | 14000 x 4500 x 4500 | DN1:300, DN2:300, DN3:250, DN4:250

Applications

• Industrial Manufacturing: food processing, chemical plants, textile printing and dyeing, high-temperature washing, drying and forming processes
• Agriculture & Aquaculture: greenhouse cultivation, aquatic farming, agricultural product drying
• Environmental & Municipal Services: wastewater treatment plants, waste disposal facilities

Competitive advantage
Integrated system design reduces site fragmentation compared with traditional boiler rooms, enables modular deployment and AIoT-enabled remote management, and supports reduced engineering time, lower operating costs and decreased carbon emissions for high-temperature HVAC and dehumidification needs.

Technical specifications

• Place of origin: CHINA
• Brand: JOSEM
• Model series: JDHS
• Design: fully integrated, modular plug-and-play
• Control: AIoT Smart Hub for monitoring, diagnostics and remote control
• Target use: industrial high-temperature HVAC and dehumidification applications
• Typical dimensions by model: 10000 x 4000 x 4000 mm to 14000 x 4500 x 4500 mm
• Connection ports: DN125 / DN150 / DN250 / DN300 depending on model
