LED display RB-TFT3.2V2TFTresistive touch screen320 x 240
Add to favorites
Compare this product
Characteristics
- Type
- LED, TFT, resistive touch screen
- Format
- 320 x 240
- Other characteristics
- programmable
Description

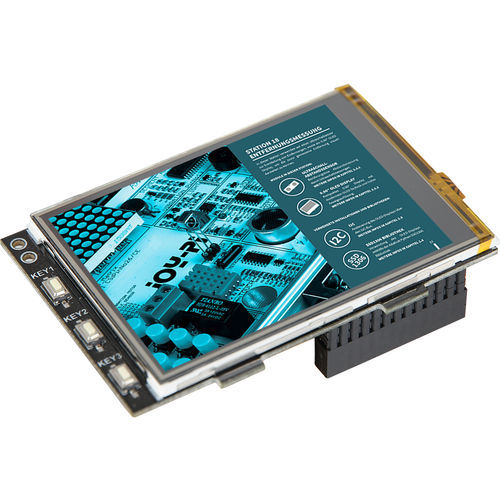

With the 3.2 Inch TFT Touchscreen-Display you can easily build a Mini-Tablet-PC based on an Raspberry Pi.
The display, with a maximum resolution of 320x240 pixels, can be attached to the GPIO connections so that you won‘t need any mounting-skills.
The Display offers 3 free programmable buttons.
DISPLAY
3.2" (8.13cm)
TOUCHSCREEN CONTROLLER
XPT2046
TOUCHSCREEN TECHNOLOGY
Resistive Touch Screen, Single-Touch
IC DRIVER
SSD1289
COLORS
65.536
BRIGHTNESS
350 cd/m
INTERFACE
SPI
OPERATING TEMPERATURE
0 - 70°C
VIEWING ANGLE
Horizontal: up to 45°, Vertical (Top): up to 45°, Vertical (Bottom): up to 20
COLOR
Black
SPECIAL FEATURES
LED backlight, can be plugged directly onto the GPIO header, 3 freely assignable buttons: connected to GPIO12, GPIO16 & GPIO18
COMPATIBLE TO
Raspberry Pi A, B, B+, 2B, 3B, 3B+, 4B
DIMENSIONS
85 x 20 x 60mm
WEIGHT
52 g
ITEMS SHIPPED
3.2" display module, stylus
