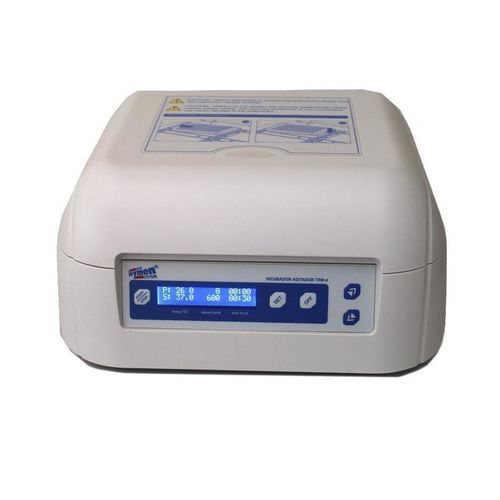

Orbital thermoshaker TRM-4

digitalfor microplatesbenchtop

Thermo-shaker TRM-4 designed to heat and agitate Microtiter plates with digital control of temperature, time and speed. Includes safety protections for overtemperature and motor overload, and is suitable for laboratory workflows requiring simultaneous heating and shaking of multiple 96-well plates.

Key features

• ABS exterior housing with a heating/agitation platform accommodating up to 4 Microtiter plates of 96 wells each.
• Top lid lined with a treated aluminium plate; lid heating operates simultaneously with the main platform for uniform temperature control.
• Digital display for parameters: temperature, time and speed (current value and setpoint).
• Acoustic and visual alarm at end of cycle and in case of programmed temperature/time malfunction.
• Integrated motor providing uniform motion at the programmed speed, with overload protection (automatic shutdown and restart).
• Built-in temperature calibrator for user adjustment.
• Overtemperature protection device to ensure operational safety and reliability.

Specifications / technical data

• Reference: 5109200
• Commercial name: Thermo-shaker for Microtiter plates
• Exterior material: ABS
• Capacity: up to 4 Microtiter plates of 96 wells each
• Heating system: top lid with treated aluminium plate and simultaneous heating of lid and platform
• Controls: digital display of temperature, time and speed (current and setpoint)
• Alarms: acoustic and visual at end of cycle and for temperature/time malfunction
• Motion: integrated motor with overload protection (automatic shutdown and reactivation)
• Temperature calibrator: included for user adjustment
• Protection: overtemperature device
• Certification: CE (documentation available)
