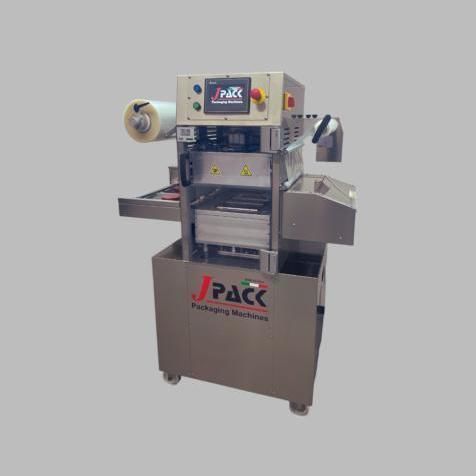

Semi skin-pack machine TSS136

automatic

Description
The J Pack TSS136-OVERSKIN TOUCH compact automatic tray sealer is designed for SKIN packaging of products that protrude from trays or rigid cardboard. It features the patented AutoSpeed handling system to optimize throughput and offers selectable automatic or semi-automatic cycles. The intuitive 7" touchscreen simplifies cycle management and maintenance. Its ultra-compact footprint is suited to constrained workspaces.

Technical data
Machine size and weight: mm 1130 x 760 x h 1540 / kg 270
Tray max size: mm 390 x 280 x h 100
Reel max width and diam.: L = 450 mm - Ø 200 mm
Feeding: 6/8 bar - 24 NL/C (machine) - 3 bar (gas)
Tray loading and movement: Automatic + Pneumatic
Mould: Fixed with die-cut
Mould change: available
Customizable mould: available
Film automatic unwinding: included
Cycle-end acoustic device: included
Cycles/minute: 3-8
Partial and total cycle counter: included
Customized digital sealing programmes: 10
Vacuum pump options: 40 m3/h or 70 m3/h
Voltage - Absorption: 380V 3P+N+T - power 2500 W min / 3500 W max

Characteristics / technical specifications

• Compact automatic SKIN tray sealer for products with protrusion.
• Patented AutoSpeed handling for optimized speed and selectable automatic or semi-automatic cycles.
• 7" touchscreen for intuitive cycle control and simplified maintenance.
• Ultra-compact footprint for limited workspaces.
• External dimensions: 1130 x 760 x h 1540 mm; Weight: 270 kg.
• Maximum tray: 390 x 280 x h 100 mm.
• Reel capacity: width up to 450 mm; diameter up to 200 mm.
• Pneumatic supply: 6–8 bar; air consumption: 24 NL/C; gas: 3 bar.
• Automatic tray feeding with pneumatic movement; fixed die-cut mould with option for custom moulds.
• Automatic film unwinding and cycle-end acoustic alert.
• Throughput: 3–8 cycles/minute; 10 customizable digital sealing programmes.
• Vacuum pump options: 40 m3/h or 70 m3/h.
• Electrical: 380V 3P+N+T; power consumption 2500–3500 W.
