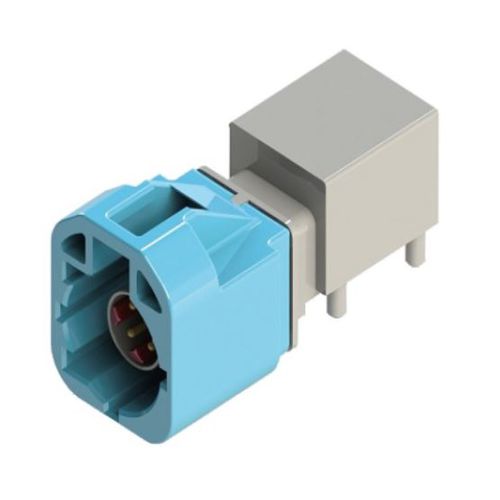

High-speed connector JPCN-A-M22044dataPCBfor GPS
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- PCB
- Product applications
- for GPS
- Other characteristics
- EMI-shielded, high-speed
- Data rate
5 GB/s
Description
HSD supports state-of-the-art serializer/decometer technology at speeds up to 5Gbit/s. for better EMI performance and adaptation to different wire materials. Available in standard housing 7 keys and color coding.
Specification
Transfer rate: 5 GBit/s (depending on wire and length)
Impedance: 100 ± 15 Ω
Shield attenuation: 0-1 GHz min. 70 dB (cable assembly)
0-2 GHz min. 60 dB (cable assembly)
Current carrying capacity: 80 ℃ min. 1.5 A (up to 3 A)
Coding：A、B、C、D、E、F、Z
Product Environmental Compliance
RoHS Compliant
Applcation/ Target Market
Advanced Driver Assistance Systems (ADAS)
telematics
multimedia
infotainment
GPS
navigation
Other 2
Temperature range : -40℃ +105℃
