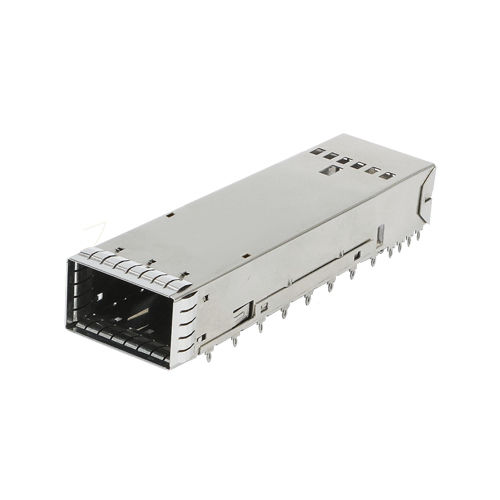

Data connector P945C110000T-0
OSFPrectangularpress-fit

data connector
data connector
Add to favorites
Compare this product


Characteristics

Type
data
Format
OSFP
Shape
rectangular
Connection type
press-fit
Other characteristics
EMI-shielded, high-speed
Data rate

56 GB/s

Description

OSFP(Octal Small Form Factor Pluggable )Connector & Cage meet IEEE 4000G & InfiniBand HDR Application operating at a blazing fast 56G/PAM4 per lane as per the latest IEEE 400G specifications. And performance can meet IEEE 400G Application Benefits / Features Compliant with osfp octal small form factor pluggable module - OSFP MSA Standard Specification Pitch(mm): N/A Number of Contacts : 1x1 Cage Assembly Gender: N/A Termination Interface: Press fit Current-Maxinum per contact: N/A Voltage Rating: N/A Dielectric Withstanding Voltage: N/A Durability: 250 Mating Cycles Material Contact: Copper Alloy Material Housing: N/A Plating Contact area: N/A Plating Terminal area: N/A Temperature Range - Operating: -20°C to +75°C Product Environmental Compliance RoHS Compliant
